The Phenomenon of Superconductivity Explained

Superconductivity is the phenomenon in which certain materials completely lose their electrical resistance at very low temperatures close to absolute zero. In that state a material behaves simultaneously as a perfect electrical conductor and a perfect diamagnet, carrying current indefinitely without energy loss and expelling magnetic fields from its interior.

What is the phenomenon of superconductivity?

Superconductivity is a quantum state of matter in which a material's electrical resistance drops abruptly to exactly zero below a characteristic temperature. Unlike ordinary conductors, where resistance only gradually decreases as they cool, a superconductor undergoes a sharp phase transition into a fundamentally different electronic state. This state carries persistent currents that can circulate for years without measurable decay, which is why superconductivity is considered one of the most striking macroscopic quantum effects.

Basic properties of superconductors

Superconductors are defined by two hallmark properties that appear together below the transition temperature:

• Zero electrical resistance — a current, once established in a superconducting loop, keeps flowing without any driving voltage and without dissipating energy as heat.
• Perfect diamagnetism — a superconductor actively expels magnetic flux from its interior rather than merely trapping the field it had before cooling, distinguishing it from a hypothetical "perfect conductor."

Two further quantum characteristics describe the superconducting state quantitatively. The energy gap is a forbidden band of energies around the Fermi energy that must be overcome to break the superconducting order; its existence was confirmed by optical and thermal experiments and by the isotope effect. Flux quantization means that magnetic flux threading a superconducting ring can only take discrete values, direct evidence of a single macroscopic quantum wavefunction.

Complete disappearance of electrical resistance

The total loss of electrical resistance is the defining feature that makes superconductivity so valuable for electrical engineering. In normal metals, moving electrons scatter off lattice vibrations and impurities, converting part of the electrical energy into heat. If a conductor's resistance is zero, an arbitrarily large current can be passed through it with no heating losses whatsoever — the long-standing dream of electrical engineers.

Because of heating in ordinary wires, up to 20% of all generated electricity is lost irretrievably, while in transmission lines made from superconductors the losses would be negligible. The American professor Richard McPhee calculated that a superconducting cable roughly the thickness of a human arm could carry the entire peak power output of all U.S. power stations.

The Meissner effect and expulsion of the magnetic field

The Meissner effect is the active expulsion of magnetic field from the interior of a material as it becomes superconducting, discovered in 1933 by Walther Meissner and Robert Ochsenfeld. When a sample is cooled below its critical temperature in a magnetic field, the field lines are pushed out, so the interior field falls to zero. This is what allows a magnet to levitate stably above a superconductor and demonstrates that a superconductor is more than a perfect conductor — it is a genuine thermodynamic phase.

The brothers Fritz London and Heinz London provided the first phenomenological description of the Meissner effect through the London equations, which relate the supercurrent to the electromagnetic field and predict how deeply an external field penetrates a superconductor. The characteristic decay distance, the London penetration depth, is typically only tens of nanometres, so the field is confined to a thin surface layer.

History of the discovery of superconductivity

Superconductivity has been studied intensively ever since its accidental discovery in 1911, driving an ongoing search for new superconducting materials that would let engineers exploit the phenomenon in practical devices with maximum energy efficiency and economic benefit. Progress has moved in waves — from early elemental metals, through practical alloys, to the high-temperature copper-oxide families discovered in the 1980s.

The 1911 discovery by Heike Kamerlingh Onnes

Superconductivity was first observed in 1911 by the Dutch physicist Heike Kamerlingh Onnes, who had earlier become the first to liquefy helium and so reach temperatures near absolute zero. Studying the resistance of a mercury wire cooled with liquid helium, he found that the resistance vanished abruptly at about 4.2 K. For his pioneering work in low-temperature physics Kamerlingh Onnes received the Nobel Prize in Physics in 1913, and superconductivity research has been recognised with several Nobel awards since.

Critical temperature and phase transitions

The critical temperature, written T_c, is the temperature below which a material becomes superconducting and above which it returns to its normal resistive state. The transition is a sharp phase change: within a fraction of a degree the material switches between two distinct electronic phases. The value of T_c varies enormously — from a few kelvin in simple metals to well above 90 K in the best cuprates — and it sets the cooling requirements and therefore the practical cost of any superconducting system.

The transition temperature to the superconducting state (T_c)

The higher the transition temperature of a material, the easier and cheaper it is, both technically and economically, to build a complete superconducting installation, because less demanding refrigeration is needed. Among practical materials, the niobium–titanium alloy has a transition temperature of about T_c = 8–10 K, whereas intermetallic compounds such as Nb₃Sn reach 17–20 K. The isotope effect — the dependence of T_c on the atomic mass of the lattice ions — was a decisive experimental clue showing that lattice vibrations are central to the mechanism, guiding physicists toward a microscopic theory.

The physics of superconductivity

The physics of superconductivity is explained at the deepest level by quantum mechanics, in which electrons cease to behave as independent particles and instead form a single coherent collective state. The theoretical understanding grew in stages: the London phenomenology of the 1930s, the Ginzburg-Landau theory of the 1950s, and finally the microscopic BCS theory of 1957, which tied all the observations together.

BCS theory and Cooper pairs

The BCS theory, published in 1957 by John Bardeen, Leon Cooper and Bob Schrieffer at the University of Illinois, is the first successful microscopic explanation of conventional superconductivity, and its authors shared the 1972 Nobel Prize for it. Its central idea is that an attractive interaction, mediated by lattice vibrations, binds electrons into pairs. Leon Cooper showed that even a very weak attraction is enough to make the normal Fermi sea of electrons unstable, so that pairs — now called Cooper pairs — form and lower the system's energy.

Formation of electron pairs and their boson-like behaviour

A Cooper pair forms when one electron distorts the positively charged atomic lattice as it passes, and a second electron is attracted to that momentary concentration of positive charge — an effective attraction carried by phonons, the quanta of lattice vibration. Because a Cooper pair has integer total spin, it behaves like a boson rather than an individual electron, which is a fermion bound by the Pauli exclusion principle. Bosons are not forbidden from sharing the same quantum state, so vast numbers of Cooper pairs condense into a single ground state described by one wavefunction, and it is this collective condensate that flows without resistance.

Behaviour of electrons in superconductors versus ordinary conductors

Electron behaviour differs fundamentally between the two states. In an ordinary conductor the conduction electrons fill available energy states up to the Fermi energy and move largely independently, scattering off lattice imperfections and losing energy as heat — the origin of electrical resistance. In a superconductor the electrons near the Fermi energy are bound into Cooper pairs separated by the energy gap; because scattering a single pair would require breaking the whole coherent condensate, individual small collisions cannot slow the current, and the resistance disappears entirely.

Coherence length and the order parameter

The coherence length measures the distance over which the superconducting state varies smoothly and roughly the size of a Cooper pair, while the order parameter is a complex quantity whose magnitude describes how "strongly superconducting" the material is at each point. The Ginzburg-Landau theory, together with contributions from Pippard, expressed superconductivity in terms of this order parameter and successfully described interfaces, magnetic penetration and the behaviour of superconductors in strong fields, complementing the microscopic picture provided by BCS theory.

Conventional and high-temperature superconductivity

Superconductors divide into conventional materials, well described by phonon-mediated BCS theory, and unconventional high-temperature superconductors, whose pairing mechanism is still debated. The distinction matters both for basic physics and for applications, because the unconventional materials operate at temperatures reachable with cheaper coolants.

Cuprate and iron-based superconductors

High-temperature superconductivity was discovered in 1986 in copper-oxide (cuprate) materials, a breakthrough that raised transition temperatures far above anything expected from conventional theory. Compounds such as YBCO superconduct above the boiling point of liquid nitrogen, making them dramatically cheaper to cool. A second family, the iron-based superconductors, was identified later and offers a different route to high critical temperatures. Neither family is fully explained by standard BCS phonon pairing, so identifying the mechanism of these unconventional superconductors remains one of the field's central open questions.

Cryogenic cooling and refrigerants

Cryogenic cooling is essential to reach and hold the temperatures where superconductivity appears, and the choice of refrigerant is driven by the material's critical temperature:

• Liquid helium (~4.2 K) is required for conventional low-temperature superconductors such as niobium–titanium and Nb₃Sn.
• Liquid nitrogen (~77 K) is sufficient for cuprate high-temperature superconductors, and being far cheaper and more abundant it greatly lowers running costs.

The cost and complexity of refrigeration are often what determine whether a superconducting technology is practical, which is why raising the critical temperature has such strong economic value.

Applications of superconductivity

Superconductivity is already used across medicine, science and heavy industry wherever intense magnetic fields or lossless currents are needed. The most widespread applications rely on superconducting magnets, but the same zero-resistance, quantum-coherent behaviour underlies extraordinarily sensitive measuring instruments.

Prospects in electrical engineering and power

Superconductivity opens fantastic prospects for electrical engineering, power generation and transport. Because a superconductor carries current with no heating loss, it enables efficient power transmission, compact high-field generators, and a range of advanced physical instruments. Beyond power engineering, superconducting devices make possible extremely sensitive detectors: the SQUID, built around a Josephson junction, measures magnetic fields far too weak for any ordinary sensor and underpins techniques such as magneto-encephalography, which maps the tiny magnetic signals produced by the brain. Superconducting magnets also power magnetic resonance imaging (MRI) scanners, synchrotrons and particle accelerators.

Energy losses in ordinary wires

Energy loss in ordinary wires arises because electrons scatter within the metal lattice and dissipate power as heat, and this waste grows with the square of the current. Replacing resistive conductors with superconducting ones removes that loss almost entirely, which is why superconducting cables and coils are attractive for high-current applications where conventional wiring would overheat or waste large amounts of electricity.

Ultra-strong magnetic fields and maglev transport

Superconductors make it possible to generate ultra-strong magnetic fields, which are indispensable for building thermonuclear reactors, unique current-generator designs, new physical instruments, magnetic-levitation (maglev) trains and many other useful devices. In maglev transport the powerful, stable fields of superconducting magnets combine with the Meissner effect and diamagnetic levitation to lift vehicles clear of the track, eliminating friction.

Superconductivity in composites

By creating composites, engineers can tailor the required physical properties and thereby solve a wide variety of physical problems. One of these is the creation of superconducting devices. This is a very large undertaking involving specialists from many fields. The task for physicists and chemists is to obtain substances that exhibit superconductivity.

Turning already-known superconducting materials into a specific product — a superconducting wire — is a characteristic task for materials scientists.

A superconducting wire as a composite

Years of theoretical and experimental research led physicists to the following conclusion about the construction of superconducting wires: reliable operation of a superconducting wire can be ensured only if the wire is a composite consisting of a heat-conducting matrix (for example copper) in which continuous superconducting fibres, oriented along the wire's axis, are uniformly distributed.

Ideally the diameter of these fibres should not exceed a few micrometres, and their number should run into the thousands or tens of thousands. The volume concentration of fibres in the matrix should be 5–7%, while the diameter of the whole wire should be on the order of 1 mm.

Superconducting fibres

The task of materials scientists is to learn how to produce such a wire, and it is far from simple. The problem is that the traditional methods of creating composites are not suitable for solving it:

1. There are no superconducting fibres of micrometre diameter that are also hundreds of metres or kilometres long.
2. Even if such fibres existed, it would be hard to guarantee that they would not break somewhere during processing, which means there could be no confidence in the quality of the composite or in its reliability.

Here one has to look for some new, unconventional routes. It is necessary to establish which materials exhibit superconductivity and how expedient it is to use them as superconducting fibres. The most suitable for this are the niobium–titanium alloy or intermetallic compounds such as Nb₃Sn, Nb₃Ge, Nb₃Ga, and others.

The first alloy has a transition temperature to the superconducting state of T_c = 8–10 K, whereas for the intermetallics this temperature is 17–20 K. And the higher the transition temperature, the simpler it is, economically and technically, to build the superconducting installation as a whole. But the alloys have a very significant advantage — they are ductile and can be worked under pressure without the risk of destroying them.

The intermetallics, by contrast, are brittle and cannot be worked under pressure. Which should be preferred? Materials scientists work out how to make a composite of copper reinforced with the thinnest wires of niobium–titanium alloy, and also develop the use of more promising fibres. In doing so they interpret results and analyse information that may point to some new routes.

In the course of this thinking came the idea that one should exploit the good plastic properties of both the niobium–titanium alloy and copper and try to deform them together. One could take a copper billet, drill several holes in it, insert rods of niobium alloy into them, and draw such a composite blank down to the required diameter.

But the number of fibres in such a composite would equal the number of drilled holes. How many can be drilled? Ten, a hundred. Yet tens of thousands of fibres are needed. Suppose you take a sheet of paper and fold it in half, then in half again, then again — and so on fifty times — how thick would the resulting stack of paper be?

Let this sheet be 0.1 mm thick. Folding it in half gives 0.1 · 2 = 0.2 mm, folding again 0.1 · 2² = 0.4 mm, again 0.1 · 2³ = 0.8 mm. Each fold doubles the thickness, so folding the sheet fifty times gives a stack thickness of 0.1 · 2⁵⁰ mm. But 2⁵⁰ ≈ 10¹⁵, so the sought thickness is 10¹⁴ mm = 10⁸ km = 100,000,000 km. One hundred million kilometres!

A completely unexpected result. That is more than half the distance from the Earth to the Sun. Suddenly it became clear how to solve the problem. The fibres can be made to multiply! It is all very simple — one only needs to use the properties of a geometric progression.

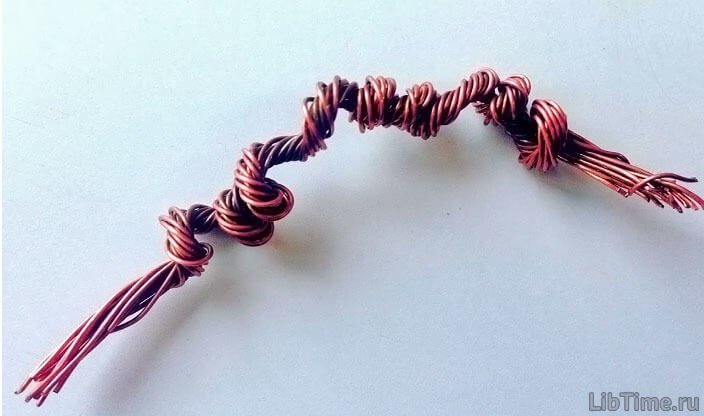

One can take a copper blank (say 100 mm in diameter), drill a hole 25 mm in diameter, insert a rod of niobium–titanium alloy, and draw this blank down to a diameter of, say, 10 mm. Then the long bimetallic rod is cut into several short rods of equal length (say seven), which are packed together into a copper can and again subjected to joint drawing or extrusion.

The result is a long copper rod, in which seven niobium–titanium rods are now pressed, their diameter much smaller than the original. It can again be cut into seven parts, again packed into a copper can, and again forced through a die. After this the copper rod will already contain 7² = 49 niobium–titanium wires, whose diameter is reduced still further.

If the same operations are repeated five times, we obtain 7⁵ = 16,807 fibres of superconducting alloy in the copper matrix; if six times, 7⁶ = 117,649 fibres. Of course, the rods need not be cut into seven parts; they can be cut into any other number, for example 10, 15, 19, and so on. The fundamental solution has been found. Of course there will still be many obstacles in its implementation, and much will still not work out, but when you are confident that you are on the right path, all obstacles can be overcome.

In the case above a ductile alloy was used as the superconducting material. For many superconducting devices the properties of the resulting composite wire are insufficient. It is necessary to decide how to introduce brittle intermetallic fibres, for example of Nb₃Sn, into the composite. The former technology is out of the question — Nb₃Sn does not lend itself to plastic deformation.

Drawing it is useless even together with a copper matrix — it will break anyway. Yet the same interfacial interaction that causes so much trouble when creating heat-resistant composites can in this case be put to useful work. Make the adversary into an ally and helper.

One can proceed as follows: draw down together with the matrix not the compound Nb₃Sn but pure niobium, and then, having obtained the required material structure, convert the niobium into Nb₃Sn in some way. This is probably not so hard to do. One needs to work out how to deliver tin to the niobium fibres, after which, on heating, the niobium will react with it to form the compound we need.

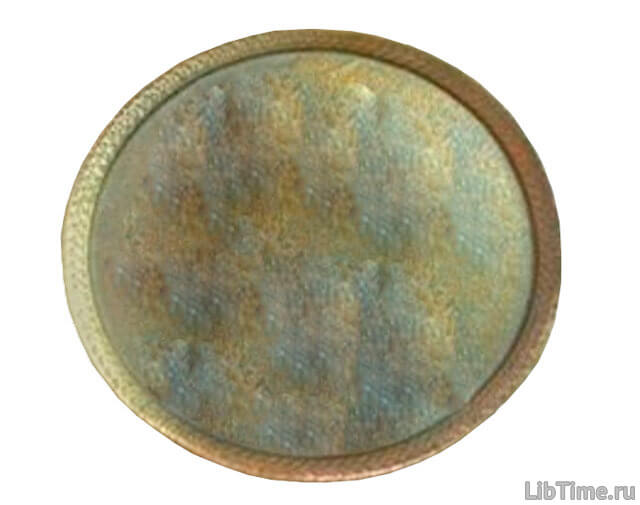

We turn back to the earlier technology, only instead of the niobium–titanium alloy we use pure niobium, and instead of pure copper its alloy with tin (bronze). Both niobium and bronze can undergo plastic deformation. After the bronze–niobium composite has been brought to the required structure — that is, once the niobium fibres are a few microns in diameter — we heat the resulting wire.

On heating, diffusion accelerates sharply, and tin atoms from the bronze begin to penetrate into the niobium and form a compound with it.

The drawback of a bronze matrix is its reduced thermal and electrical conductivity compared with copper. This disadvantage can be lessened by using a mixed matrix containing pure copper alongside the bronze. But on heating the copper may react with the tin, again degrading its electrical and thermal characteristics.

To prevent this, barriers must be placed between the copper and the bronze, which will at the same time reduce eddy currents. Tantalum is convenient for this purpose. Consider what a wire containing Nb₃Sn fibres looks like. Schematically its structure consists of 19 polygons whose shape is close to hexagonal — these are wires made of the bronze–Nb₃Sn composite.

They are all arranged in a copper matrix. The cross-section of one such wire consists of 187 groups containing Nb₃Sn fibres, with 19 such fibres in each group and bronze matrix between them. In total the composite wire contains 67,507 fibres about 5 μm in diameter (more precisely, each fibre consists of a niobium core coated with a layer of Nb₃Sn about 1 μm thick).

To finish the manufacturing process the whole composite is given a rectangular shape so that it can be wound tightly onto a core. Such a rectangular composite conductor, with a cross-section of 1.75 × 5.46 mm, can carry a current of 5000 A in a field of 6 T and 1250 A in a field of 12 T. But the demands of technology rise every year, and meeting them requires materials with still higher properties.

This means one must go further, put forward new ideas, develop new technologies and create new materials. Questions such as the phenomenon of superconductivity, and how composites make it possible to solve problems beyond the reach of ordinary materials, are addressed not by one person or one organisation, and not within a single year. The work is very large and labour-intensive.

Carrying it out unites the efforts of specialists from many professions — physicists, chemists, mathematicians, designers and materials scientists.

Current research and open questions

Current superconductivity research centres on explaining unconventional high-temperature superconductivity and on raising the critical temperature toward room temperature, which would transform energy and transport technology. Programmes such as those funded by the DOE Office of Science support laboratories including Oak Ridge National Laboratory in the search for new materials and pairing mechanisms.

Key problems and directions of research

The main open problems in superconductivity research remain both fundamental and practical:

• The pairing mechanism of cuprates and iron-based superconductors — unlike conventional materials, these are not explained by simple phonon-mediated BCS theory, and identifying what binds their Cooper pairs is unresolved.
• Higher critical temperatures — the goal of a room-temperature superconductor at ambient pressure would remove the need for costly cryogenic cooling.
• Critical current limits in wires — practical conductors must carry large currents in high fields without losing superconductivity, which continues to challenge materials scientists.
• Manufacturability — turning brittle high-temperature compounds into long, flexible, reliable wires remains difficult, echoing the composite-fabrication problems solved for niobium-based conductors.

Progress on these questions draws on the full history of the field — from the London equations and Ginzburg-Landau theory to BCS theory — and on international collaboration among physicists, chemists and materials scientists working to make superconductivity ever more practical.
