Fibre-Reinforced Composites: Structure, Properties, and Modern Applications

Reinforced composites are among the most fascinating and promising materials in modern engineering. Hundreds of laboratories worldwide are working on their development, and the idea behind that work is simple and easy to grasp.

To strengthen a given material (the matrix), you introduce fibers that are stronger than the matrix itself. Those fibers must be firmly bonded to the matrix and arranged so that they carry the main load acting on the material. This fiber-and-matrix pairing is the essence of every fiber-reinforced composite, from everyday industrial parts to high-performance aerospace structures.

What are reinforced composites?

Reinforced composites are materials made of two or more distinct phases—a continuous matrix and a reinforcing phase—that combine to deliver properties neither component could achieve alone. A composite material differs from a simple mixture because its constituents remain physically separate at the microscopic scale, each keeping its own identity while the interface between them transfers load. Composite engineering treats this combination as a designable system rather than a fixed alloy.

Composite materials fall into several broad classes: polymer-matrix composites such as fiber-reinforced polymers (FRP), ceramic-matrix reinforced ceramics, and metal-matrix systems. Fiber-reinforced polymers themselves split by fiber type into glass-fiber-reinforced polymer (GFRP, commonly called fiberglass), carbon-fiber-reinforced polymers (CFRP, also known as graphite-reinforced polymer), and aramid-reinforced grades. Reinforced materials is the wider umbrella term; every composite is a reinforced material, but reinforced concrete—where steel bars stiffen a brittle cement matrix—shows the same principle at building scale.

The matrix and the reinforcing fibers

The matrix phase binds the reinforcement together, protects it from the environment, and distributes stress between fibers. Common polymer matrices include epoxy resin, polyester resin, and vinyl ester among the thermosets, while thermoplastics such as nylon and PEEK serve where toughness or recyclability matters. Epoxy dominates high-performance work because it bonds strongly and cures with low shrinkage.

The fiber phase carries most of the load and sets the composite's strength and stiffness. Reinforcing fibers include glass fibers, carbon fibers, aramid, and boron filaments, along with emerging carbon nanotubes. Between fiber and matrix lies the interphase region—a thin transition zone whose bonding quality governs how efficiently stress passes from the weaker matrix into the strong fibers. Poor interfacial adhesion is a frequent cause of premature failure.

The history of reinforced materials

Reinforced materials have deep historical roots, but their scientific era began in the 1960s. Straw-reinforced bricks, reinforced concrete, and early natural-fiber polymers all predate modern composites, yet materials scientists long treated fiber composites as unfamiliar and studied them only casually. From the 1960s onward the situation changed sharply, driven by aerospace demand for lightweight, stiff structures.

Properties of reinforced materials

Reinforced materials were once never regarded as ultra-strong, ultra-stiff, ultra-tough, or superconducting. Today those very "ultra" qualities are expected of them—and not merely expected but achieved, yielding properties unattainable in conventional materials.

Reinforced composites gain new fields of application every year, from tennis rackets and skis to aircraft and spacecraft. Put yourself in the place of a designer who has spent a lifetime engineering parts from alloys and is suddenly told to build them from CFRP. Neither carbon nor resin inspires confidence in someone who knows how brittle and unreliable each is on its own, and it is not easy to convince that engineer that a composition of carbon fibers and resin is nothing like carbon and resin taken separately.

Advantages of fiber-reinforced composites

Fiber-reinforced composites offer a combination of benefits that metals rarely match all at once. The headline advantages include:

• High strength and stiffness at low weight—an exceptional strength-to-weight and stiffness-to-weight ratio.
• Corrosion resistance and freedom from galvanic corrosion.
• Non-magnetic behaviour, valuable in electronics and medical imaging environments.
• Tunable thermal conductivity—CFRP can conduct or insulate heat depending on fiber orientation.
• Directional strength that can be tailored to the loads a part actually sees.

High strength and low weight

The high strength-to-weight ratio is the property that first pushed composites into aerospace and racing. A CFRP panel can match the stiffness of an aluminium one at a fraction of the mass because carbon fibers combine a very high elastic modulus with low density. For many structures the designer cares about the specific modulus—the ratio E/γ, where γ is density—and fiber composites lead conventional metals decisively on this measure.

Corrosion resistance and galvanic corrosion

Corrosion resistance is a major reason marine and chemical industries adopt FRP. Glass- and aramid-reinforced polymers do not rust, so tanks, hulls, and piping made from them outlast steel in wet or aggressive service. Carbon fiber, however, is electrically conductive and sits far from most metals on the galvanic series; when CFRP contacts aluminium or steel in a moist environment, it can accelerate galvanic corrosion of the metal, so designers isolate the two with insulating layers.

Environmental effects and moisture degradation

Environmental exposure slowly degrades polymer-matrix composites, chiefly through moisture uptake. Absorbed water plasticises the resin, lowers its glass-transition temperature, and can weaken the fiber–matrix interphase, reducing transverse strength. Ultraviolet radiation and temperature cycling add micro-cracking over time. These effects make long-term environmental durability a core design consideration, especially for outdoor and marine structures.

Brittleness and the limits of epoxy matrices

Brittleness is the main drawback of high-performance composites. Epoxy resin, for all its strong adhesion and low shrinkage, is inherently brittle and offers limited fracture toughness; cracks propagate through it rather than blunting. This makes CFRP susceptible to low-velocity impact damage—a dropped tool can create barely visible internal delamination that seriously lowers residual strength. Toughened epoxies and thermoplastic matrices such as PEEK are used where impact resistance is critical.

Anisotropy and isotropy

Anisotropy is the dependence of a material's properties on direction, while isotropy is their independence from direction. An isotropic material has identical properties in every direction; an anisotropic one has different properties along different axes—and this pronounced anisotropy is the key feature that sets reinforced composites apart from traditional materials.

Brick, chalk, wax, a steel casting, and a lump of clay are isotropic; wood, mica, bone, and plywood are anisotropic (more on this: biocomposites). Single crystals are always anisotropic. Their atoms sit in an ordered lattice, so interatomic distances and interaction forces differ with direction, and properties follow suit.

Metals are isotropic

Most metals and alloys encountered in practice are effectively isotropic even though they are crystalline—and there is no contradiction with the rule that crystals are anisotropic, because ordinary metals are polycrystalline.

A polycrystal consists of a great many tiny crystals (grains) from a few micrometres to a few millimetres across, each able to take any orientation in space. This random grain arrangement averages the properties over all directions, giving the polycrystal isotropy.

Orienting the grains in one direction—by rolling, pressing, or drawing—makes the polycrystal anisotropic, but this anisotropy is comparatively weak and arises as a by-product of plastic deformation rather than deliberate design.

Reinforced composites are anisotropic

In reinforced composites the anisotropy is structural—built into the material on purpose according to how the part will be loaded—and it is usually very strongly expressed. Whether that is good or bad depends entirely on the circumstances: some applications need isotropic materials, others anisotropic ones. On close inspection, isotropic materials are often used where isotropy is not actually needed.

Tailoring strength to chosen directions

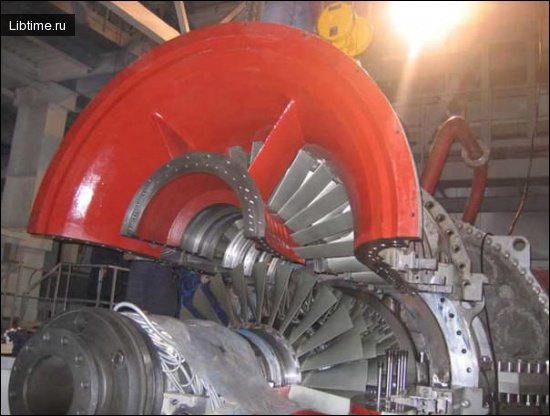

Consider designing a material for a gas-turbine blade. The blade spins rapidly, and inertia creates large tensile stresses along the radius of rotation—call that the radial direction. In other directions, such as the circumferential one, the stresses are small, yet the blade must be sized for the largest stress or it will fail.

Creating an anisotropic material lets you regulate properties direction by direction to match the stresses. You make it stronger where stresses are high and weaker where they are low—and you do it simply by laying more fibers in one direction and fewer in another. Directional strength customization is therefore not a limitation but a design freedom.

Fiber orientation and anisotropy effects

For a reinforced composite the familiar question "what is its strength?" has no meaning on its own—it always demands the counter-question "in which direction?", because composite properties can differ by tens of times between axes. Epoxy resin reinforced with parallel boron fibers has a tensile strength above 1000 MPa along the fibers but under 100 MPa across them; a CFRP can be a conductor in one direction and a dielectric in another.

Describing an anisotropic material therefore takes more parameters than an isotropic one, and how many depends on the nature of the anisotropy. Fiber layup sequences—the order and angle at which plies are stacked—are the practical tool for setting that behaviour, so orientation and layup are engineered together with the part.

Mechanics of reinforced composites

The rule of mixtures and elastic-modulus equations

The rule of mixtures predicts a composite's properties from the volume fractions of its constituents. For the elastic modulus along unidirectional fibers, the longitudinal modulus follows E‖ = E_f·V_f + E_m·V_m, where E_f and E_m are the fiber and matrix moduli and V_f, V_m their volume fractions. This value governs Hooke's law σ = Eε, in which the modulus of elasticity E—Young's modulus—is the constant of proportionality between stress σ and elastic strain ε, first defined by Thomas Young in 1807.

An isotropic material has a single Young's modulus; an anisotropic one has at least two. In the simplest anisotropic composite, with all fibers aligned one way, the material is transversely isotropic, and two moduli are needed: one parallel to the fibers (E‖) and one perpendicular (E⊥), with any intermediate direction computed from those two. Along with Young's modulus, the elastic constants include the shear modulus, bulk modulus, and Poisson's ratio; an isotropic material has three independent elastic constants, a transversely isotropic one five, an orthotropic one nine, and a fully anisotropic material up to twenty-one.

Failure modes in composite materials

Failure in composites rarely follows the single crack path of a metal. Instead several distinct failure modes compete: fiber breakage, matrix cracking, fiber–matrix debonding at the interphase, and delamination between plies. Fracture toughness is governed by how these mechanisms interact—energy absorbed by fiber pull-out and debonding can arrest a crack that would otherwise run straight through the brittle matrix. Understanding which mode dominates is essential for safe design.

The challenge of fatigue-limit design

Designing composites for fatigue is harder than for metals because they lack a clear, single fatigue limit. Damage accumulates progressively as micro-cracks and local delaminations grow under cyclic loading, and residual strength falls gradually rather than at one sharp threshold. Engineers therefore rely on damage-tolerance testing and conservative knock-down factors, particularly for aerospace parts where cyclic loads are continuous.

Manufacturing methods for reinforced composites

Fiber layup and orientation methods

Layup methods place and orient the reinforcement before the matrix cures. Hand lay-up and the automated lamination process stack plies at chosen angles, while filament winding wraps continuous fiber around a rotating mandrel to build pressure vessels, pipes, and other complex shapes with fibers aligned exactly to the hoop and axial stresses. In a cylindrical vessel where circumferential stress is twice the axial stress, placing twice as many fibers around the circumference as along the axis gives near-equal strength in both directions—rational design in action.

Compression molding and carbon fiber forging

Compression molding presses a fiber-and-resin charge between heated matched dies to form high-volume parts quickly. Carbon fiber forging, a variant using chopped-tow charges, lets manufacturers such as BMW mould complex structural components in short cycle times. Vacuum bagging complements these methods: sealing the layup under a flexible membrane and drawing a vacuum consolidates the plies and removes trapped air and excess resin, raising fiber fraction and reducing voids.

Cutting and precision machining

Cutting and machining cured composites pose challenges absent from metalwork. Abrasive carbon fibers cause rapid tool wear, and drilling or trimming can trigger delamination or fiber pull-out at the edges. Precision methods—diamond-coated tooling, waterjet, and laser cutting—limit this damage. Where possible, the part and its composite material are designed and manufactured together, eliminating much cutting, welding, and forming and yielding a large economic saving over metal fabrication.

Carbon-fiber-reinforced polymers (CFRP): composition and advantages

Definition and composition of CFRP

Carbon-fiber-reinforced polymers (CFRP) are composites in which carbon fibers reinforce a polymer matrix, most often epoxy resin. Also called graphite-reinforced polymer, CFRP delivers the highest specific strength and stiffness of the common fiber composites, is non-magnetic, and can be engineered to conduct or block heat. These advantages make it the material of choice where every gram matters.

Precursor materials and carbon-fiber production

Carbon fibers are produced mainly from polyacrylonitrile (PAN) precursor, which is spun into filaments, stabilised in air, then carbonised at high temperature in an inert atmosphere until only a nearly pure carbon lattice remains. The alignment of graphitic planes along the fiber axis gives carbon fiber its remarkable modulus. Pitch and rayon serve as alternative precursors for specialised grades.

Applications of reinforced composites

Anisotropic composite structures are used ever more widely in engineering: huge storage tanks, submarine and rocket hulls, spherical pressure vessels, helicopter rotor blades, aircraft turbine blades, car bodies, and the supporting frames of solar arrays are now built from reinforced materials—designed rationally, with the part and its material created at the same time.

Aerospace

The aerospace industry was the first major adopter of CFRP, using it for airframes, wings, and turbine blades where the strength-to-weight ratio directly lowers fuel burn. Reinforced ceramics extend the same logic to the hottest engine sections, surviving temperatures that would soften metals.

Automotive

The automotive industry uses fiber composites to cut vehicle mass and improve efficiency; BMW, for example, has built passenger-cell structures from CFRP. Weight saving improves both performance and, for electric vehicles, driving range.

Construction and civil engineering

Construction relies heavily on reinforced concrete and its fiber variants. Steel-fiber-reinforced concrete (SFRC) disperses steel fibers through the mix to raise tensile strength, toughness, and crack control in floors and tunnel linings. Glass-fiber-reinforced concrete (GFRC) uses alkali-resistant glass fibers to make thin, lightweight architectural panels, and its design must account for long-term strength retention. Plastic-reinforced concrete (PRC) adds polymer fibers to reduce shrinkage cracking. FRP rebar replaces steel where corrosion resistance is paramount.

Sports equipment

Sports equipment showcases composites at consumer scale—from tennis rackets, skis, and bicycle frames to fishing rods and hulls. Boat building and repair increasingly uses fiberglass and carbon over traditional wood: a drift boat can be built by laminating glass fibers over a plywood or foam core, and the same materials serve hull construction, finishing, and repair. Anglers who follow fishing benefit directly from the light, corrosion-proof rods these composites make possible.

Economic benefits and recycling of composites

Fabricating a part and its composite together is a strong economic advantage, cutting the machining, forming, and welding that metal parts demand. Natural fiber-reinforced composites (NFRC), using flax, hemp, or other plant fibers, add sustainability by replacing glass with renewable reinforcement. Recycling remains the harder problem: thermoset composites cannot be simply remelted, so mechanical grinding, pyrolysis to recover fibers, and reuse of thermoplastic-matrix systems such as PEEK are the leading routes toward a lower-waste composites economy.

Conclusion

The intense modern interest in reinforced composites was sparked by the realisation that thin fibers can reach far higher strengths than bulk material of the same substance. By combining strong fibers with a binding matrix and orienting them to match real loads, engineers design the material and the product at once—an ability that keeps reinforced composites at the frontier of aerospace, automotive, construction, and sports engineering.
