The best material for a flywheel is a strong, lightweight one — for maximum energy storage, composites such as organic-fibre-reinforced plastics outperform every traditional metal, while for automotive clutch flywheels cast iron and steel remain the practical choices. The question of flywheel material is really an example of a broader engineering problem: what should we make rockets and tennis rackets, boats and vaulting poles, fuel tanks and car bodies out of? The most rational answer, in a great many cases, is composites.
What a flywheel is and what it is for

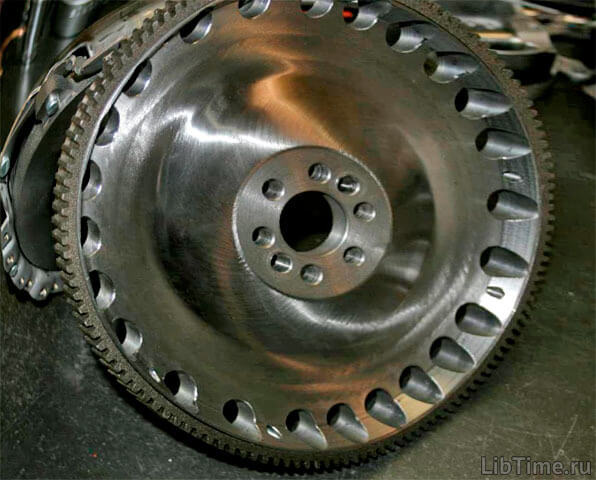

A flywheel is a wheel with a heavy rim mounted on the shaft of a machine that runs under uneven load, and its purpose is to smooth out that machine's motion. A 1977 polytechnic dictionary defined it in exactly those terms, and the definition still captures the everyday mechanical role of the device in reciprocating engines, compressors and pumps.
If evening out shaft motion were the only goal, it would make sense to build flywheels from the heaviest material possible so they could do their job at comparatively small size. That was the traditional logic — but the modern role of the flywheel in engineering has expanded well beyond it, and the old definition is now clearly incomplete.
Definition and basic operating principle of a flywheel
A flywheel works by storing kinetic energy in a spinning mass and giving it back when the driven machine needs it. Mounted on a rotating shaft, the flywheel resists changes in rotational speed: it absorbs energy during the power stroke of an internal combustion engine and releases it during the intervals between strokes, keeping the crankshaft turning evenly. In a manual transmission car the flywheel also carries the ring gear for the starter motor and the friction surface for the clutch, so it links the engine to the drivetrain as well as smoothing power output.
Conservation of angular momentum and rotational energy storage
A flywheel stores energy through the conservation of angular momentum: once spun up, a massive rotor keeps turning until an external torque slows it, and that stored rotational kinetic energy can be tapped on demand. Today the strong interest in flywheels comes less from their traditional load-balancing duty and more from the problem of recovering mechanical energy — capturing the energy that is otherwise wasted when a machine or vehicle brakes.
The flywheel as a mechanical energy accumulator
A flywheel is a mechanical energy accumulator — a device that can take in mechanical energy, hold it, and release it again when required. Spin a heavy flywheel fast enough and, through its inertia, it can develop enough power to move a bus or a train. That property inspired the key idea: instead of dumping a vehicle's kinetic energy into brake heat, use it to spin up an on-board flywheel.
Regenerative braking on vehicles
Regenerative braking with a flywheel recaptures the kinetic energy that ordinary brakes throw away as heat. Trains, cars, trams, trolleybuses and buses have to stop frequently, and with conventional brakes each stop converts the vehicle's kinetic energy into heat in the pads and discs, dissipating it irrecoverably into the environment. Calculations show that roughly half the energy developed by the engines is lost in braking — an unaffordable waste under any energy crunch.
With a flywheel, that lost energy is stored during braking and then fed back through dedicated mechanisms to the drive wheels when the vehicle pulls away, so the acceleration is powered by energy salvaged from the previous stop. This can cut fuel consumption by 30–50%, sharply reduce toxic exhaust emissions, and improve a vehicle's ability to keep moving. That is why flywheel-equipped vehicles, using the flywheel as a supplementary energy source, are being developed intensively worldwide.
Use in reciprocating engines and power-output smoothing
In a reciprocating internal combustion engine the flywheel absorbs the pulsed torque of the combustion strokes and returns it between firings, giving a smooth, continuous output at the crankshaft. The heavier the flywheel's rotational inertia, the more effectively it damps engine speed fluctuations, noise and vibration — which is why heavy engines and diesels traditionally use large, heavy flywheels, while high-revving performance engines favour lighter ones for quicker response.
Directional control and stabilization applications
A spinning flywheel resists changes to the orientation of its axis, and this gyroscopic property is exploited for directional control and stabilization. Gyroscopes and reaction wheels use flywheel physics to hold or adjust the attitude of ships, aircraft and satellites without expending propellant — a satellite can be re-pointed simply by accelerating or decelerating internal reaction wheels, transferring angular momentum to the spacecraft body.
The core requirement: maximum stored energy
The overriding requirement placed on a flywheel follows directly from its purpose: it must store as much energy as possible while spinning. Modelled as a thin ring, its stored energy E is given by:
E = 0.5 mV2 (1)
where m is the mass of the ring and V its rim (linear) velocity. On the face of it, this implies a flywheel should be made as heavy as possible and spun as fast as possible to raise its energy capacity.
Speed limited by the strength of the material
The rotation speed of a flywheel cannot be raised without limit — it is capped by the strength of the material. Above a certain speed a flywheel bursts, and since rim speeds run to tens and hundreds of metres per second, such a failure is catastrophic. At best it wrecks the shaft and running gear; at worst the fragments fly off at enormous speed, destroying nearby structures and, most seriously, killing people. Bursting must never be allowed to happen, which makes safety margins central to any flywheel design.
What forces tear a flywheel apart
A flywheel is torn apart not by rotation itself nor by imaginary centrifugal forces, but by deformation. It is common to hear "inertial forces" or "centrifugal forces" blamed, yet no such physical forces exist — they are bookkeeping conveniences that make calculations easier. What really acts are the elastic bonds between the parts of the flywheel. As each part tries to keep moving in a straight line (inertia) while the body turns, those bonds deform to force the parts onto their circular paths.
If the forces needed to maintain rotation exceed the strength of the bonds between the parts, the body fails. For the thin-walled ring we use to model a flywheel, the stress σ it develops can be estimated as:
σ = γv2 (2)
where γ is the material density and v the rim velocity. Failure occurs when σ reaches the material's ultimate tensile strength σu, at which point v equals the limiting velocity vlim:
vlim = √(σu / γ) = √σsp (3)
The ratio of strength σu to density γ is called the specific strength σsp. The limiting rotation speed of a flywheel therefore equals the square root of its specific strength. And while formula (1) gives the total stored energy, the energy stored per unit mass (say, per kilogram) is:
e = E/m = 0.5v2 (4)
Substituting vlim from (3) into (4) gives the maximum specific energy elim each kilogram of the rotor can hold:
elim = 0.5σu/γ = 0.5σsp (5)
The maximum specific energy that can be pumped into a flywheel is therefore fixed unambiguously by the specific strength of the material it is made from. Of two materials of equal strength, the lighter one has the higher specific strength — so to make a flywheel as energy-dense as possible it should be built not from a heavy material but from a light yet strong one.
Which material to use for a flywheel
Choosing the flywheel material comes down to specific strength for energy-storage rotors, and to durability, friction behaviour and cost for automotive clutch flywheels. A naive reading of formula (1) suggests the densest available metal — tungsten, at 19,300 kg/m3. Only osmium (22,500 kg/m3), iridium (22,400 kg/m3) and platinum (21,450 kg/m3) are denser, and all are prohibitively expensive. But once the burst-speed limit is taken into account, dense metals turn out to be the wrong answer for energy storage, and the material question splits by application.
High-density metals: tungsten, osmium, iridium, platinum
High-density metals such as tungsten, osmium, iridium and platinum are the worst, not the best, choice for a high-energy flywheel. Because stored specific energy is governed by specific strength, and these metals combine high density with only moderate strength, their specific strength is very low — tungsten's is the lowest of all the materials compared here. A dense-metal rotor tears itself apart at comparatively low speed before it can accumulate much energy.
Cast iron flywheels (gray and ductile iron)
Cast iron is the traditional material for production automotive flywheels because it is inexpensive, easy to cast to shape, dimensionally stable and has excellent damping and heat-absorbing properties. Gray cast iron, with its graphite flakes, dampens vibration well and provides a good clutch friction surface, while ductile (nodular) iron adds toughness for higher-load applications. Cast iron is also self-lubricating at the friction face and shrugs off the heat of clutch slip.
Characteristics of a cast iron flywheel
A cast iron flywheel is heavy, cheap and durable, but it is speed-limited and brittle. Its relatively low tensile strength restricts safe RPM, so cast iron flywheels are generally kept away from very high-revving, high-stress racing use where they can crack or shatter. For street cars and most factory (OE) applications, however, the added rotating mass smooths idle, tames vibration and gives forgiving, easy-to-drive behaviour with a manual transmission. Damaged cast iron flywheels can sometimes be reclaimed through specialist cast iron welding services rather than being scrapped.
Steel flywheels and grade 1045 steel
Steel flywheels are chosen when higher strength and higher safe RPM are needed than cast iron can provide, and 1045 steel is the workhorse grade for them. 1045 is a medium-carbon steel that combines good tensile strength with adequate hardness at the friction surface, machines cleanly, and stands up to the heat and stress of a performance clutch. Lower-carbon grades such as 1018 steel are too soft to hold a durable friction face, while higher-carbon 1080 steel is harder but more difficult to machine and weld, so 1045 steel is the common compromise for automotive flywheel construction.
Carbon content requirements for flywheel steel
The carbon content of flywheel steel matters because it sets both the friction-surface hardness and the machinability of the blank. Too little carbon (as in 1018 steel) leaves the clutch face too soft and prone to wear; too much carbon raises hardness and strength but complicates machining and welding. Medium-carbon 1045 steel, at around 0.45% carbon, hits the practical balance — hard enough for the friction surface, tough enough to resist cracking, and workable enough for CNC machining and Blanchard grinding. For low-volume racing flywheels, normalized EN8 (a British medium-carbon grade broadly comparable to 1045) is also widely used.
Chromoly (chromoly) flywheels
Chromoly flywheels are made from chromium-molybdenum alloy steel such as 4140 steel, prized for its high tensile strength and fatigue resistance. Chromoly lets a flywheel be run lighter and thinner than plain carbon steel while retaining a large safety margin against bursting, which is why 4140 is favoured for demanding motorsport rotors that must survive very high RPM.
Billet aluminum flywheels
A billet aluminum flywheel, typically machined from 6061 aluminum, is a lightweight option that dramatically reduces rotating mass for sharper throttle response. Because aluminum is too soft to serve as a clutch friction face, billet aluminum flywheels use a replaceable steel friction insert bonded or bolted to the aluminum body — this insert takes the clutch wear and heat while the aluminum keeps overall weight low. These flywheels suit track and race cars where quick engine response outweighs the smoothness of a heavy rotor.
Billet steel flywheels
A billet steel flywheel is CNC-machined from a solid forged steel blank rather than cast, giving a stronger, denser and more consistent rotor than cast iron. Billet steel construction allows precise control of weight distribution and lets manufacturers safely certify flywheels for high-RPM racing use. Billet steel flywheels are the go-to choice when a builder needs both strength and durability but does not want the maintenance of a replaceable-insert aluminum unit.
Composite flywheels and the advantages of carbon fibre
Composites — carbon fibre and organic-fibre-reinforced polymers — deliver the highest specific strength of any known structural material, which makes them the ideal choice for high-energy "superflywheels." Because their strength is high and their density low, composite rotors can be spun to enormous speeds that would burst a metal flywheel, so each kilogram of an organic-fibre-reinforced composite can store about 14 times more energy than a kilogram of tungsten. The table below compares the specific strength of several conventional engineering materials with that of composites.
| Material | Ultimate tensile strength, MPa | Density, kg/m3 | Specific strength, MPa/(kg/m3) |
| Alloy steel | 1500 | 7800 | 0.190 |
| Aluminum alloys | 600 | 2700 | 0.220 |
| Titanium alloys | 1500 | 4500 | 0.300 |
| Tungsten alloys | 1500 | 19300 | 0.078 |
| Composites: | |||
| Boron-aluminum | 1400 | 2700 | 0.520 |
| Carbon-aluminum | 1000 | 2300 | 0.430 |
| Carbon-fibre plastics | 1400 | 1550 | 0.900 |
| Organic-fibre plastics | 1500 | 1380 | 1.090 |
The figures show that composites, and organic-fibre plastics in particular, are the best material for superflywheels; tungsten, which we first proposed, turns out to be the worst because of its very low specific strength. Carbon-fibre plastics come close to organic plastics in specific energy: although their specific strength is slightly lower, their Young's modulus is far higher (more detail: reinforced composites), so carbon-fibre flywheels deform less — an important advantage, since organic-fibre rotors are prone to delamination largely because of their low stiffness.
The possibilities of composite flywheels cannot be realized in every case. Although specific energy is independent of mass, the absolute stored energy is proportional to mass, so a useful flywheel must still be fairly heavy — and packing enough mass into a small organic-plastic rotor is difficult. Where there are no tight size limits and full permissible speeds can be reached, however, organic plastics are unbeatable. As an illustration, a 127 kg organic-plastic superflywheel storing 30 kW·h, spun up in five minutes by a powerful external motor, could drive a passenger car at 96 km/h over 320 km; an electric car with the same performance would need a battery pack weighing a tonne, so one kilogram of flywheel stores far more energy than a kilogram of today's electric battery.
Lightweight flywheels
A lightweight flywheel reduces rotating mass to let the engine accelerate and decelerate faster, sharpening throttle response, cutting turbo lag and improving supercharger efficiency. The trade-off is drivability: with less stored inertia the engine is more prone to stalling and idles less smoothly, so lightweight rotors suit track cars and enthusiast builds more than everyday street cars. Standard-weight (OE) flywheels, by contrast, prioritise smoothness and forgiving low-speed manners over outright responsiveness.
Comparing flywheel materials
Flywheel material choice is a balance between weight, strength, safe RPM, drivability and cost, and the right answer depends entirely on the application. The comparisons below cover the everyday automotive decisions builders actually face.
Cast iron versus steel for flywheel construction
Cast iron and steel differ chiefly in strength and safe operating speed: cast iron is cheaper and damps vibration better, but steel tolerates far higher RPM and stress without cracking. For a stock or mild street build cast iron is entirely adequate and pleasant to drive; for high-horsepower or high-RPM use, a steel flywheel provides the safety margin cast iron lacks.
Cast iron versus billet steel
Cast iron is poured into a mould while billet steel is machined from a solid forged blank, and that difference shows up in consistency and strength. Billet steel has no casting porosity, offers uniform grain and higher tensile strength, and can be certified for aggressive racing duty, whereas cast iron remains the economical choice for stock replacement where extreme speeds are never reached.
Cast flywheel versus steel flywheel
A cast flywheel wins on cost, damping and idle smoothness, while a steel flywheel wins on strength, durability and RPM headroom. Choosing between them is really a matter of matching the rotor to how the vehicle is used rather than declaring one universally superior.
Cost versus performance trade-offs
Flywheel material is ultimately a cost-versus-performance decision: cast iron is cheapest and best for stock and daily-driven cars, 1045 steel and billet steel cost more but unlock higher RPM and durability, chromoly and billet aluminum command a premium for motorsport weight savings, and composite superflywheels sit at the far, specialised end for energy-storage systems. Spending on exotic material only pays off when the application genuinely demands its strength-to-weight advantage.
How flywheels are manufactured
Modern flywheels are produced by casting or by machining solid blanks, then finished to tight tolerances so the friction surface runs true and the clutch mounts correctly. The main production and finishing methods are described below.
CNC machining of flywheels
CNC machining shapes a flywheel from a billet or casting with computer-controlled precision, cutting the friction face, clutch register, bolt pattern and ring-gear seat to exact dimensions. A vertical machining centre (VMC) performs these operations in one setup where possible, and careful tool setup and re-indication of the blank between operations keep runout within specification.
Blanchard grinding
Blanchard grinding produces a flat, parallel friction surface using a rotary-table surface grinder, and it is the standard method for finishing steel and cast iron flywheel faces. The characteristic swirl pattern it leaves also helps seat the clutch disc during break-in. For resurfacing worn flywheels, a dedicated tool such as a Van Norman flywheel surfacer restores the friction surface to the correct flatness and finish.
Custom steel flywheel manufacturing
Custom steel flywheels are built to order from grades such as 1045 steel, EN8 or 4140 chromoly, machined to a specific weight, bolt pattern and clutch specification for a particular engine. This route serves builders adapting rare or vintage powerplants — for example a 1957 Lincoln Y-block engine in a hot-rodded 1949 Ford coupe — where no off-the-shelf flywheel exists and the crankshaft flange, ring gear and clutch dimensions must all be matched from scratch.
Aftermarket flywheel production
Aftermarket flywheel producers such as Centerforce and Clutch Masters manufacture performance flywheels to defined weight and material specifications, often certified to the SFI 1.1 standard for racing safety. Aftermarket units let owners tune rotating mass to their goals — lighter for response, heavier for smoothness — while meeting the durability and burst-safety demands of high-power use.
Cast iron flywheel welding
Cast iron flywheels that are cracked or have damaged ring-gear teeth can often be repaired by specialist cast iron welding rather than replaced, preserving hard-to-find vintage and heritage parts. Welding cast iron is demanding because of its brittleness and carbon content, so it is entrusted to shops experienced in the pre-heat and slow-cool procedures the material requires — an approach that also carries an environmental benefit by keeping serviceable castings out of the scrap stream.
Clutch mounting: specifications and dimensions
A flywheel must match its clutch and engine in a set of critical dimensions: the crankshaft bolt pattern, the clutch bolt pattern and pilot bore, the ring-gear tooth count for the starter motor, and the friction-surface diameter and finish. Runout must be held within tight tolerances during assembly, and the friction face must suit the clutch disc material — a metallic disc needs a harder, heat-tolerant surface, while an organic disc is more forgiving of surface finish. Getting these specifications right is what lets the clutch engage smoothly and the starter mesh reliably.
How to choose a flywheel material for the job
Choose a flywheel material by starting from how the vehicle or machine is used, then matching material properties to that duty:
- Stock or daily-driven street car: cast iron (gray or ductile) — cheap, smooth-idling and durable at normal RPM.
- Fast road or dual-purpose car: 1045 steel or billet steel — higher safe RPM with good drivability.
- Dedicated track and race car: chromoly (4140), billet steel or billet aluminum with a steel friction insert, SFI 1.1 certified — minimum weight, maximum response.
- Low-volume or vintage racing: normalized EN8 or a custom-machined steel blank matched to the engine.
- Energy-storage superflywheels: carbon-fibre or organic-fibre composites — highest specific strength for maximum stored energy where size is not tightly constrained.
The single rule that ties these choices together: for smoothing engine output and easy driving, favour rotating mass and damping; for response and high-speed energy storage, favour specific strength and light weight.
Organic-fibre composites

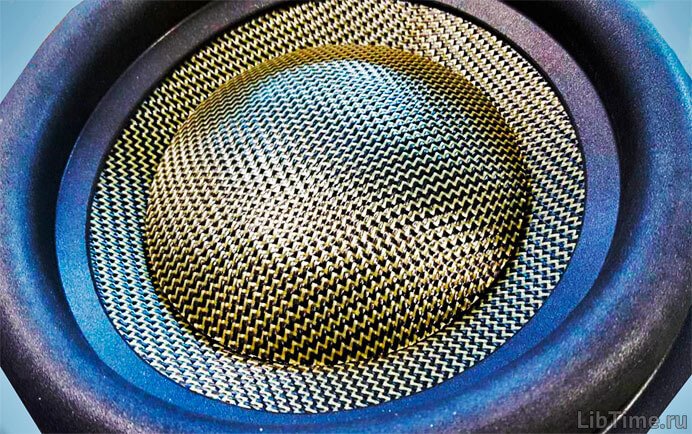

Organic-fibre composites are made of a polymer matrix reinforced with organic fibres, and they now rival or beat glass, metallic and ceramic fibres on strength. The best-known such fibres — known as SVM in the region and as Kevlar abroad — reach 3,000–4,000 MPa tensile strength, are easy to process and work with, and are produced in steadily growing volume.
In heavily loaded structures, however, the low Young's modulus of organic-fibre plastics causes large deformations that impair performance. To counter this, stiffer carbon fibres are added, producing hybrid composites containing two or more fibre types. Where Kevlar-49 fibre has a modulus of about 140,000 MPa, carbon fibres reach 200,000–700,000 MPa at strengths of 1,000–3,500 MPa.
Reinforcement need not be limited to individual fibres and filaments — woven fabrics, meshes and yarns of organic and carbon fibre can all be used. The low density of organic- and carbon-fibre plastics (five times lower than steel and almost half that of aluminum), combined with high strength, makes them highly attractive to designers not only of flywheels but of spacecraft, aircraft, submarines, sporting equipment and much else.
Polymer composites are already widely used in engineering, while metal-matrix composites lag behind in industrial adoption. The reason is clear: methods for making the newer polymer-matrix composites (carbon-, organic- and boron-fibre plastics) differ little from the long-established glass-fibre techniques developed half a century ago, so replacing glass fibres with better ones proceeds fairly smoothly on the same equipment and with the same specialists. Industrial experience with metal composites, by contrast, is still scarce — they are genuinely new materials requiring non-traditional metallurgy and metalworking, special equipment, and unfamiliar handling, and the unfamiliar always looks unreliable.
Whether to use a metal or a polymer composite is decided by the operating conditions. In superflywheels, polymer composites are the better choice because their specific strength is higher and the heating in service is small; near room temperature, polymer composites are usually preferable on mechanical properties generally. Their serious weakness is heat: even the most heat-resistant polymers break down above 600–700 K, so structures exposed to intense heating need metal composites.
Other properties can also dictate the matrix material — electrical resistance, thermal conductivity, radiation resistance, tendency to accumulate static charge and so on — with polymers suiting some cases and metals others. Polymer and metal composites therefore not only compete but complement each other, and the more varied composites researchers create, the wider engineering's possibilities and the more refined the products made from them.
