Difference Between Brittle and Ductile Materials: Key Properties and Examples

The difference between brittle and ductile materials comes down to how they fail: brittle materials fracture suddenly with almost no plastic deformation, while ductile materials deform noticeably before they break. As one careless student's answer put it:

the first fail brittly, and the second fail ductily.

Below the joke lies a genuine engineering distinction that governs material selection, structural safety, and how designers protect against catastrophic failure. This page explains what brittle and ductile materials are, how each type fractures, how their resistance to cracking differs, and how composites can be engineered to turn brittle components into tough, reliable structures.

What are brittle materials: definition and characteristics

Brittle materials are those that fracture with little to no plastic deformation, breaking abruptly once their strength limit is reached. In everyday life we meet brittle materials constantly. A light tap of a trowel is enough to split a brick. A crystal vase nudged at the edge of a table can end in disaster. A football meeting the neighbour's window keeps the glazier in work. All of these are consequences of brittleness.

The defining trait of a brittle material is a very low fracture strain — it separates almost immediately after the elastic limit is exceeded, without the elongation seen in ductile metals. On a stress-strain diagram, a brittle material shows a nearly straight elastic line that ends in sudden failure, with no extended plastic region.

Mechanism of brittle fracture

Brittle fracture proceeds through the rapid propagation of existing cracks under tensile stress, with the material splitting along new surfaces almost instantaneously. Because the deformation before failure is minimal, the fracture gives little warning and consumes little energy, which is precisely what makes brittle failure so dangerous in load-bearing structures.

Examples of brittle materials

Typical brittle materials include glass, stone, brick, ceramics, and cast iron. These materials are strong under compression but weak in tension, and they contain internal defects — dislocation pileups, pores, and micro- and macro-cracks — that act as starting points for fracture.

What are ductile materials: definition and characteristics

Ductile materials are those that undergo substantial plastic deformation before fracturing, stretching and reshaping rather than snapping. For a ductile material, the everyday knocks that shatter brittle objects are entirely safe. The failure of a ductile material is normally tied to its plastic deformation, whereas a brittle material breaks with almost none of it. That is the outward picture; to understand the difference more deeply, an example helps.

Mechanism of ductile fracture and plastic deformation

Ductile fracture begins with plastic deformation that redistributes stress, often producing localized necking — a narrowing of the cross-section — before the material finally separates. Metals such as aluminum, copper, gold, silver, nickel, iron, and structural steel elongate significantly under load, which is why metal drawing can pull them into wire. Ductility, the ability to be stretched into a wire, is closely related to but distinct from malleability, the ability to be hammered or rolled into thin sheets; a material can be highly malleable yet only moderately ductile. The extent of that stretching is captured by measurements such as percent elongation (the change in gauge length divided by the original length) and percent reduction in area (the drop in cross-sectional area at the fracture point).

Examples of ductile materials

Common ductile materials include aluminum, copper, structural steel, gold, silver, nickel, and modeling clay. Their capacity for plastic deformation is exactly what lets manufacturers form, draw, and shape them, and it is why designers value ductility so highly for structures that must fail gracefully rather than catastrophically.

Comparison of failure types: brittle versus ductile

The core contrast between brittle and ductile failure is the amount of plastic deformation preceding fracture: brittle materials break sharply along a plane, while ductile materials neck, elongate, and tear. This difference in behaviour shapes how each material is tested, selected, and analysed in engineering design.

Elastic limit and plastic deformation

The elastic limit is the stress up to which a material returns to its original shape once the load is removed; beyond it, plastic deformation becomes permanent. Brittle materials fracture at or very near this limit with almost no plastic region, while ductile materials continue to deform plastically well past it before failing — a behaviour clearly visible on stress-strain diagrams as an extended curve after the elastic portion.

Fracture strain and its significance

Fracture strain — the total strain a material can withstand before it breaks — is small for brittle materials and large for ductile ones. This single characteristic explains most of the practical differences: high fracture strain gives warning of impending failure, absorbs energy, and tolerates local stress concentrations, while low fracture strain means the material can shatter without notice.

Fracture energy of brittle and ductile materials

The deeper distinction between ductile and brittle materials lies in the energy required to break them: ductile materials demand far more. Take two identical specimens of different materials, one of ceramic and one of aluminum, with equal strength. Does it take equal work to break them? Clearly not. The force required is the same.

But because the ceramic deforms very little before it breaks, the displacement over which the force acts is small, so the work — calculated as force multiplied by displacement — is small too. Aluminum, before it fails, stretches and greatly increases its length, so the breaking force acts over a much longer path than in the previous case, and the work turns out to be many times greater.

When a structure must perform reliably, the intuition is to build it from a strong material. That statement seems so natural it feels unreasonable to doubt. Real materials, however, always contain defects — dislocation pileups, pores, micro- and macro-cracks. When a specimen is deformed, it accumulates elastic strain energy, and a material always strives to shed excess energy. How can it do so? Very simply — by fracturing. Once broken, it is no longer subject to the stresses and therefore drops into a state of lower stored energy.

In this case its total energy will be greater than in the original (unloaded) state, because in splitting into two parts it acquires two new surfaces along which fracture occurred. Atoms on these surfaces possess excess energy, called surface energy. Yet even accounting for that, the combined energy of the fractured specimen is less than that of the loaded specimen just before failure.

The difference in resistance to crack formation

A material can fail only through the propagation of cracks already present within it, and it is the resistance to that propagation that most sharply separates brittle from ductile behaviour. As each crack grows, the energy accumulated around it is released, and by the law of conservation of energy that energy must transform into something else. Into what?

Crack growth and propagation

A. Griffith gave a clear answer: in brittle materials, the released elastic energy converts into the energy of the newly formed crack surfaces. He thus applied the law of conservation of energy to the process of fracture. If the elastic strain energy of a brittle material exceeds the energy needed to create two new surfaces, the crack begins to grow spontaneously and the material fails. Crack propagation is driven by stress concentration at the crack tip — the stress there far exceeds the applied external stress, and the sharper the crack, the greater that concentration.

Fracture toughness and crack resistance

The amount of energy required for fracture, referred to the cross-sectional area, defines the fracture toughness, or crack resistance. Consequently, the difference between brittle and ductile materials lies in their differing resistance to the spread of major cracks. In a brittle material cracks travel freely, needing little energy to advance; in a ductile material major cracks bog down and struggle to move, because the bulk of the energy is spent on plastic deformation, leaving too little for creating the new surfaces that crack growth requires.

Plastic deformation acts as a kind of relief valve, venting the dangerous excess of elastic energy. Brittle materials have no such valve. Even so, the possibility of crack growth in ductile materials must still be considered, because the relief valve has a limited capacity, and beyond a certain point it can no longer keep up. Then cracks begin to grow catastrophically even in a ductile material. But the greatest danger they pose is to brittle materials.

The Griffith criterion and conservation of energy

How can crack growth be fought? At first glance the odds look poor — you cannot remake a material's nature; if it is brittle, it is brittle. But let us not stop at first impressions. If nature has provided no obstacles to cracks in brittle materials, then we must create them ourselves. This is the moment to turn to composites.

Composites made from brittle materials

A composite made of two brittle materials will not become plastic, but it can very well become tough. This means no plastic deformation will appear in it, yet the spread of major cracks can be arrested by another route.

Cracks in brittle materials

Before pointing to that route, a few words on the habits of cracks in brittle materials. To defeat an enemy you must know it well. Studying crack behaviour under tensile loading revealed an interesting feature.

Besides these, tensile stresses directed horizontally arise near the crack tip. At the very tip they are practically absent, but a little way ahead, in the still-intact material, they become quite significant — reaching up to 20% of the acting stresses. This was calculated by the English scientists J. Gordon and J. Cook. It is this peculiarity of stress distribution around a crack that can be exploited to fight it in composites.

How composites differ from ordinary materials

One of the main differences between composites and ordinary materials is that composites contain a great number of internal interfaces. In reinforced composites these are the boundaries between fibres and matrix; in laminated ones, the boundaries between layers. The strength of these boundaries can be tuned — that lies within the power of the technologists.

Consider what happens if a crack starts spreading inward from the surface of a composite. Take fibreglass — epoxy resin reinforced with glass fibres. Both the resin and the glass are brittle in themselves, yet fibreglass is tough, with high crack resistance. This is because when a crack originating in the resin starts to grow, it inevitably runs into an interface.

If the bond strength between resin and glass is less than the stress magnitude, the composite partially delaminates. Forming that delamination costs energy, which is thereby stolen from the main crack. When the point of most dangerous stress reaches the boundary, the crack falls into a trap — the delamination. Joining these cracks is equivalent to blunting the main crack, which reduces the stress concentration near its tip.

Stress concentration is the mechanism that lets a crack fulfil its tendency to grow according to Griffith's energy criterion. It is like the wheels of a cart perched on a mountaintop: the cart wants to roll down, but it can do so only if it has wheels. Without wheels the cart stays put, and without stress concentration at its tip a crack will not grow. A sharp blunting of the tip lowers the stress concentration and switches off the crack's main advancing mechanism, stopping it.

To push the crack further, the stress must be increased. Once again interfaces stand in the path of the main crack, drawing off its energy into less dangerous longitudinal delaminations. So instead of one transverse crack that would easily destroy the material, many small longitudinal cracks form — which hardly beautify the material but let it keep working for a long time. To make a composite of two brittle components tough, a very definite (optimal) bond strength between matrix and fibres is needed.

If the bond exceeds the optimum, the crack ignores the interface and passes straight through, destroying the fibres, the matrix, and the material as a whole. If it is too weak, the delaminations can become very large and severely weaken the composite. But when the bond between components is optimal, a composite of brittle constituents turns out tough, because breaking it demands a large expenditure of energy. This is how composites realise the formula brittleness + brittleness = toughness. It emerges that a material must be made less strong (its interfaces weakened) to win in toughness — and thereby in reliability. As one of Felix Krivin's characters used to say:

...everyone looks for where it is better, and when everyone looks for where it is better, it becomes worst of all. To find where it is better, you must look for where it is worse.

In composites the worst is at the interfaces — usually the weakest spots. It turns out these weaknesses are a necessary condition for strength. Energy can be robbed from cracks in composites in another way, too. Imagine a brittle matrix reinforced with short brittle strengthening fibres — for instance, ceramic reinforced with ceramic whiskers. The toughness of such a material can be raised by pulling the fibres out of the matrix. At optimal bond strength and fibre length, the energy spent on this pull-out can greatly exceed the fracture work of each component taken separately.

Ways to increase the toughness of materials

In a well-designed composite, energy should be spent both on pulling out fibres and on delamination. Here the crack advances perpendicular to the fibres. Near its tip the interfaces break and small shifts of the fibres relative to the matrix appear, while in the region of the crack itself the fibres are intensively pulled out of the matrix, accompanied by frictional energy losses. Such a composite is tough even if both the fibres and the matrix are brittle.

There are also simpler ways to increase the toughness of materials, for example reinforcing brittle matrices with ductile fibres, or building layered systems of alternating high-strength brittle and less-strong ductile interlayers. Beryllium, for example, attracts scientists and engineers with its unique combination of low density (1800 kg/m³) and high elastic modulus (290 GN/m²), but its use as a structural material is hindered by extreme brittleness. A composite built like a layered pie, with alternating beryllium and aluminum layers, has acceptable toughness.

Unlike pure beryllium, which fractures at once across the whole section, in this "pie" the layers break gradually, one after another, and crack growth is easy to control — as the crack passes from a beryllium layer into an aluminum one, its tip is blunted by the plastic deformation of the aluminum, which eats up most of its energy. This inevitably slows or even stops the crack.

A way to control the brittleness of a material

There is yet another way to control a material's brittleness. The difference between a brittle and a ductile material is that the brittle one fears tensile stresses, which pry cracks open. Compressive stresses are not dangerous to it — on the contrary, they help snap cracks shut and so raise its toughness. This distinction between tensile and compressive strength is central to designing safe brittle structures.

To build such a composite, one can pick two components, one brittle and one ductile, where the linear coefficient of thermal expansion of the brittle component is smaller than that of the ductile one — for example, brittle ceramic reinforced with metal wires. The final stage of making such materials usually involves heat treatment (sintering, firing, annealing, and the like) that requires heating to high temperatures.

On cooling, the metal wires tend to shrink more than the ceramic, since their coefficient of thermal expansion is larger. In doing so they compress the ceramic matrix while themselves coming under tensile stress. But because the fibres are ductile, these stresses pose them little danger. Meanwhile the compressive stresses in the brittle matrix reduce the risk of crack growth, greatly hindering crack opening under external loads.

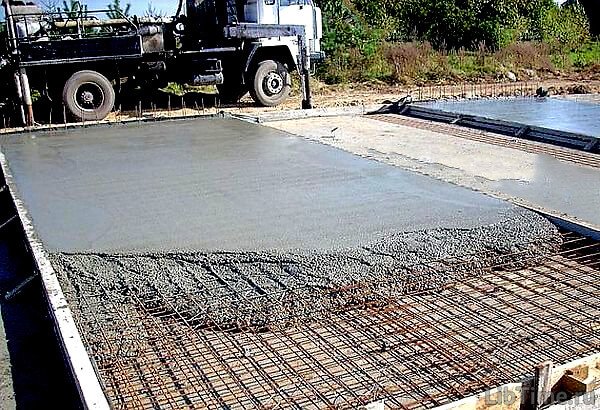

An even greater effect can be achieved with pre-stressed composites such as reinforced concrete. Reinforced concrete is concrete reinforced with steel rods, produced by pouring concrete around the reinforcement. But if the rods are first stretched, cast in concrete in that state, and allowed to set, then after the tensile load is removed the rods, striving to shorten, compress the concrete. Such reinforced concrete works far better in tension than ordinary concrete: a crack entering the brittle concrete is arrested by the compressive stresses acting within it.

Ductile-to-brittle transition temperature

The ductile-to-brittle transition temperature is the temperature below which a normally ductile material — most notably structural steel and other body-centered-cubic metals — begins to fail in a brittle manner. Above this temperature the material absorbs energy through plastic deformation, but below it the same material can shatter suddenly, which is why cold service conditions are a critical design concern. Loading speed matters as well: rapid, impact-type loading shifts behaviour toward brittleness, while slow loading allows more plastic deformation.

Influence of deviatoric and hydrostatic stresses

Material failure depends on how stress is split into a hydrostatic (pressure) component and a deviatoric (shape-changing) component. Yielding in ductile metals is driven largely by the deviatoric stress, which produces the shear responsible for plastic deformation, while the hydrostatic component alone tends only to change volume. This is why pressure-dependent failure criteria — such as the Coulomb-Mohr and Gurson criteria — are used for porous or pressure-sensitive materials, where the hydrostatic term genuinely affects when failure occurs.

Fatigue and repeated stress cycles

Fatigue is progressive, localized damage that develops when a material is subjected to repeated stress cycles, often at stress levels well below its static strength. Cracks initiate at stress concentrators — surface defects, notches, or inclusions — and grow a little with each cycle until the remaining cross-section can no longer carry the load and sudden fracture follows. Fatigue is a leading cause of unexpected failure in ductile metals precisely because it can produce brittle-like final fracture without warning.

Fracture testing and energy measurement

Fracture testing measures how much energy a material absorbs before breaking, which is the practical expression of its toughness. The Charpy V-Notch (CVN) test is the standard method: a notched specimen is struck by a swinging pendulum, and the energy absorbed in fracturing it is recorded. Running the test across a range of temperatures reveals the ductile-to-brittle transition temperature and distinguishes tough materials from brittle ones.

Failure prediction methodology

Engineers predict failure by applying failure theories that compare the stress state in a component against a material's strength using well-established criteria. For ductile materials the common choices are the Maximum Shear Stress Theory (the Tresca Criterion) and the Maximum Distortion Energy Theory (the Von Mises Yield Criterion), which define a yield surface in plane stress. For brittle materials the Maximum Principal Stress Theory (the Rankine Failure Theory), the Coulomb-Mohr and Modified Mohr criteria are used, since brittle failure is governed by the largest principal stress. More advanced criteria such as the Hosford Yield Criterion and the Gurson Failure Criterion, together with material constants determined by testing and Finite Element Analysis (FEA), let designers model complex, non-uniaxial loading conditions.

Material selection in structural design

Choosing between brittle and ductile materials is one of the most consequential decisions in structural design, because it determines whether a structure fails gradually with warning or suddenly without it. Designers weigh strength, stiffness, ductility, operating temperature, loading type, and cost, and often reach for composites when they need to combine the high strength of brittle constituents with the toughness of ductile behaviour. Understanding these mechanical properties is as fundamental to engineers as understanding fracture mechanics itself — a foundation as essential as knowing the basics of any technical field, from materials science to web development.

Preventing catastrophic failure

Catastrophic failure is prevented by favouring ductile behaviour, designing away stress concentrators, and adding redundancy so that a single crack cannot bring down the whole structure. The composite strategies described above — weakened interfaces that trap cracks, ductile interlayers that blunt them, and pre-stressing that keeps brittle material in compression — are all engineering tactics for the same goal: making sure a material gives warning and keeps working rather than shattering without notice.
