Turning a Ship Sharply Using Differential Braking
libre
What is differential braking (a turn by braking)?
Differential braking is a way of turning a vehicle by slowing down one side while the other keeps moving, so the machine pivots toward the slowed side. Sometimes a boat has to turn sharply and quickly, and the rudder alone is not enough — that is exactly when a turn by braking is used instead of relying on a steering surface.
Definition and operating principle of differential braking
The principle behind differential braking is simple: create resistance on one side of the vehicle and let the opposite side travel freely. The imbalance between the two sides produces a yawing motion that rotates the vehicle. This method appears across many kinds of transport — boats, twin-screw steamers, rail vehicles, tracked machines, and aircraft — whenever ordinary steering is either absent, ineffective, or too slow for the manoeuvre required.
Turning a boat by braking
A rowing boat is turned by braking on one side with its oars, and the sharper the turn needed, the more the two sides work against each other. When the rudder cannot swing the bow around fast enough, the crew is ordered to brake with the oars on one side, and the boat swings that way.
The command "tabañ" and what it means
The command rings out:
- Right (or left) tabañ!
The command "tabañ" in the professional language of fishermen means roughly the same thing as brake. On this order the rowers lower the right (or left) oars into the water and set their blades across the current, braking the boat's movement on one side, so the boat turns toward that side.
The command "right tabañ, left pull"
To turn even faster and sharper, the crew combines braking on one side with hard rowing on the other. The command given is:
- Right tabañ, left pull!
The rowers brake with the right oars while pulling strongly with the left. This combination of rowing and braking makes the boat turn almost on the spot — the most extreme form of a turn by braking in a rowing boat.

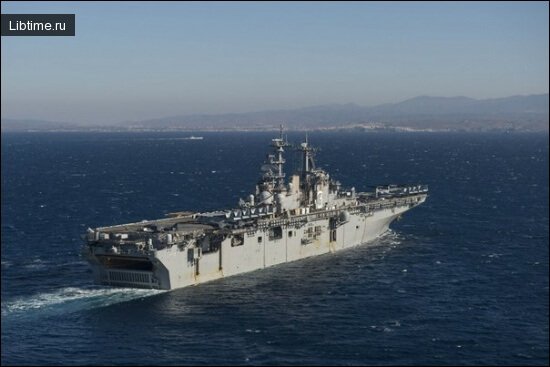

Turning a steamer with two screws
A ship's captain uses the same technique to turn a steamer when the vessel is fitted with two propellers: the engines help the rudder. During the turn one screw runs as usual while the other stops or goes into reverse, and the mismatch swings the ship around.
The rudder and engines working together
The combined work of the rudder and the two screws lets a ship turn sharply, carrying out the manoeuvre as a turn by braking. One propeller thrusts the vessel forward on its side while the other retards or reverses on the opposite side, producing a strong turning couple. This is why twin-screw ships are far more manoeuvrable in tight harbours than single-screw vessels, where the rudder must do almost all the work.

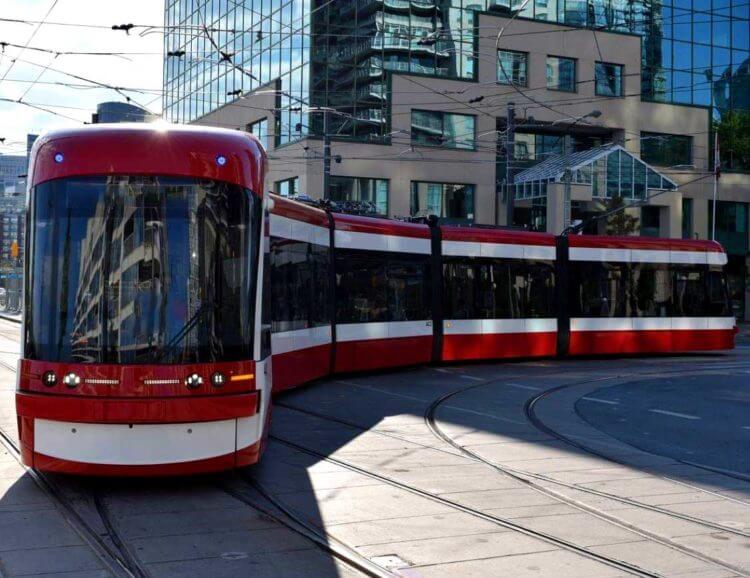

Turning rail transport: trams and steam locomotives
Trams, steam locomotives and, in general, all transport that runs on rails have no steering control: they do not need one. Their steering is replaced by the rails and the flanges. Flanges, or ridges, are the projecting edges on the rims of the wheels.
Flanges and rails instead of a steering wheel
When the wheels roll along the rails, the flanges press sideways against the rail head and prevent the carriage or locomotive from running off the track. For tramways, special grooved rails are sometimes used, and the wheel flanges run inside the groove.
On curves the locomotive or tram car tends by inertia to keep going straight ahead, but the flanges press against the rails and force the train to turn — this too is a way of turning by constrained resistance, closely related to the turn-by-braking idea.

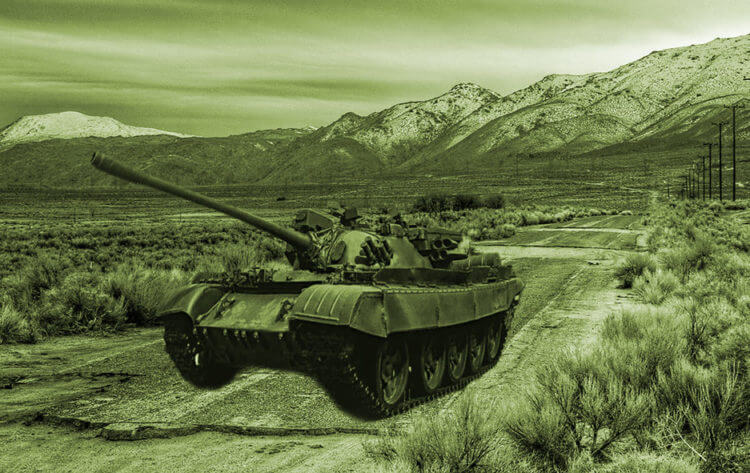

Steering tracked machines — tractors and tanks
Tracked machines — tractors and tanks — likewise have no steering wheel like their closest relatives, motor cars. Tractors and tanks are controlled by means of brakes. The right and left tracks each have separate brakes and separate braking levers.
Separate track brakes and levers
By pulling the right braking lever, the driver slows the right track while the left track continues at its previous speed, and the machine, held back on one side, turns. This layout lets tracked vehicles do what is unthinkable for wheeled ones — they can turn almost on the spot, performing a pure turn by braking.
Differential braking in aviation
In aircraft, differential braking is the technique of applying more braking force to the wheel on one side than the other to steer the aeroplane on the ground. It is the aviation cousin of the tractor and tank example above: the pilot slows one main wheel while the other keeps rolling, and the aircraft pivots toward the braked side. Pilots discuss it constantly in general aviation training, and it becomes especially relevant during a student's first flight experiences, when ground handling feels unfamiliar.
Aircraft directional control mechanisms
Aircraft steering systems on the ground rely on a mix of aerodynamic and mechanical controls rather than a steering wheel. Directional control is achieved through the rudder, nose wheel steering (where fitted), a castering nose wheel, and differential braking. Which mechanism dominates depends on speed: aerodynamic surfaces work at higher speeds, while braking and nose wheel steering take over as the aircraft slows down.
Rudder pedal operation and coordination with the brakes
Rudder pedals and brake pedals are physically linked in most light aircraft, so brake application is coordinated with rudder input rather than being a separate control. The rudder is worked with the balls of the feet on the pedals, while the toe brakes are applied by pressing the tops of those same pedals — differential braking simply means pressing harder on one side. Coordinating the two is a core skill, since heavy braking without matching rudder can lead to over-controlling.
Differential braking during the takeoff roll
During the takeoff roll, differential braking is generally avoided and directional control is handed over to the rudder as airflow builds. At the start of the roll the aircraft moves slowly and the rudder is ineffective, so nose wheel steering or gentle braking may nudge it straight; as speed increases the rudder becomes effective and the pilot transitions to using it exclusively. Managing this aircraft control transition smoothly — from ground steering to rudder control — is one of the pilot technique adjustments taught early in training.
Turns while parking and tight turns
Differential braking is at its most useful for parking manoeuvres and tight turns where a large radius is impractical. By locking or heavily braking the inside wheel while adding power, a pilot can pivot the aircraft in a very small space, much as a tracked vehicle turns on the spot. This is the everyday use of the technique for taxiing into a confined tie-down or ramp position.
Nose wheel steering and castering nose wheels
Nose wheel steering vs brake steering is a key distinction between aircraft types: some have a nose wheel directly linked to the rudder pedals, while others use a free-castering nose wheel that only follows where the mains push it. On an aircraft with a castering nose wheel, differential braking is the primary means of steering at low speed, because the nose wheel provides no steering force of its own. Aircraft such as the DA40 and the Liberty XL-2 use castering nose wheels and therefore depend on brake steering technique on the ground.
Single-pedal versus dual brake systems in aircraft
Aircraft brake layouts vary between single-pedal and dual (independent left/right) brake systems, and only the latter allows true differential braking. Configurations pilots encounter include:
- Toe brakes — pressed with the toes on top of the rudder pedals; the most common arrangement in modern light aircraft and the standard for differential braking.
- Heel brakes — operated with the heels below the rudder pedals, found on some older or classic designs.
- Finger brakes — a hand-operated brake, sometimes a single lever, seen on certain aircraft and jets.
A single central brake that acts on both wheels equally cannot steer the aircraft, whereas independent left and right brakes make differential braking possible.
Differential braking in jet fighters
Some jet fighters have relied on differential braking rather than nose wheel steering for ground control. The Mikoyan-Gurevich MiG-15, for example, used a finger-operated brake lever combined with rudder input to apply braking differentially, so the pilot steered on the ground much as a light aircraft pilot does with toe brakes. This shows the technique scales from small trainers up to high-performance military aircraft.
Light aircraft such as the DA40 versus large aircraft
Light aircraft and large transport aircraft manage ground steering very differently, and differential braking plays a smaller role as size increases. In a light aircraft like the DA40 — a type flown by pilots at fields such as KMMV in McMinnville, OR — the castering nose wheel makes differential braking the everyday steering tool at walking pace. Large aircraft, by contrast, use powered nose wheel steering as the primary system and reserve differential braking for emergencies or fine adjustments, because heavy braking on one side imposes large loads on the gear.
Comparison between differential braking and regular braking
Regular braking slows the whole aircraft evenly to reduce speed, whereas differential braking deliberately brakes one side more than the other to change direction. The table below summarises the difference:
| Aspect | Regular braking | Differential braking |
|---|---|---|
| Purpose | Reduce speed / stop | Steer and turn on the ground |
| Pedal input | Both brakes applied equally | One brake applied harder than the other |
| Effect | Straight deceleration | Yaw toward the braked side |
| Typical use | Landing rollout, stopping | Low-speed taxi, tight turns, castering nose wheel steering |
In everyday operation the two are blended: a pilot may brake evenly to slow down and then ease onto one brake to curve toward a parking spot.
Safety when using differential braking
Differential braking must be used with care because uneven braking loads the landing gear and can cause skidding, tyre wear, or loss of control if overdone. Managing the aircraft's yawing tendency — the natural swing that braking one side creates — is central to using the technique safely, and pilots are taught to make small, deliberate inputs rather than sudden hard braking.
Anti-skid systems and wheel braking performance
Anti-skid systems improve braking performance by preventing the wheels from locking, which preserves steering authority even under heavy braking. On aircraft fitted with anti-skid protection, a locked wheel is released momentarily so the tyre keeps rolling and gripping, giving better and more predictable braking than a skidding wheel. Light aircraft generally lack anti-skid, so their pilots must modulate the brakes manually to avoid locking a wheel during differential braking.
Brake system failures and alternative control methods
If the brake system fails, differential braking is no longer available and the pilot must fall back on other directional controls. Alternatives include the rudder (effective while there is enough airflow or slipstream over it), nose wheel steering where fitted, asymmetric use of engine power, and simply reducing speed so the aircraft can be stopped safely. Understanding these fallbacks is part of managing rudder control transitions and knowing what still steers the aircraft when the primary method is gone.
Conclusion
Turning by braking is one idea expressed in many machines: a rowing boat's oars, a twin-screw steamer's propellers, a tram's flanges on the rails, a tank's track brakes, and an aircraft's independent wheel brakes all steer by slowing one side relative to the other. In aviation this technique — differential braking — is essential for ground handling, especially in light aircraft with castering nose wheels, and it must always be balanced against safety, gear loads, and the smooth transition to rudder control as speed builds.
