Sliding and Rolling Friction: Key Differences and Examples Explained
libre
Rolling friction and sliding friction are the resistive forces that act at the contact surface between a moving body and the surface it travels over, converting part of the moving object's energy into heat and surface wear. It is easy to understand why water and air resist movement — they must be pushed aside to make way. But why is it so hard to pull a loaded sledge or push a cart, when nothing blocks them from the front but air? For slowly moving objects air is no obstacle, yet the motion is still difficult, because something underneath gets in the way.
That "something" is the pair of forces known as sliding friction and rolling friction.
What are sliding friction and rolling friction?
Friction is the force that opposes the relative motion of two surfaces in contact. Sliding friction (also called kinetic friction) acts when one body slides across another, while rolling friction — closely tied to rolling resistance — acts when a wheel or ball rolls over a surface. Both belong to the broader family of contact resistance forces in physics, and both drain energy from the moving object.
Definition and general overview of the frictional force
The frictional force always acts along the contact surface and points opposite to the direction of motion or the tendency to move. Friction is classified into several types: static friction, which holds a stationary object in place; kinetic friction, which resists an object already sliding; and rolling friction, which resists a wheel rolling without slipping. Static friction is characteristically non-dissipative — it does no work and produces no heat while the object stays at rest — whereas kinetic and rolling friction dissipate energy as heat and wear.
How friction differs from other resistance forces
Friction differs from fluid resistance forces such as air drag and water resistance because it arises from direct solid-on-solid contact rather than from displacing a fluid. Air and water resist a body because it must shove the medium aside; friction resists because the microscopic surface features of two solids interlock and because molecular attraction binds the surfaces together. This distinction matters in mechanics: drag grows sharply with speed, while sliding friction stays nearly constant across a wide range of low speeds.
The essence of sliding and rolling friction
Understanding the essence of sliding and rolling friction did not come at once. Scientists had to work hard to figure out what was really happening, and they nearly went down a false path. When people once asked what friction was, the answer went like this:
— Look at the soles of your shoes! Not long ago they were new and sturdy, and now they are noticeably worn, grown thinner.
Experiments showed that a careful person can take roughly a million steps along a good road before wearing through the soles — provided, of course, they are made of tough, good leather. Look at the staircase steps in some old building, a shop, or a theatre — anywhere a great many people pass through.
Where people tread most often, hollows have formed in the stone: the footsteps of hundreds of thousands of people wore the stone away. Each step destroyed its surface just a little, and the stone ground down into dust. Sliding friction wears out shoe soles and the surface of the floor we walk on. Rolling friction grinds down railway rails and tram tracks.

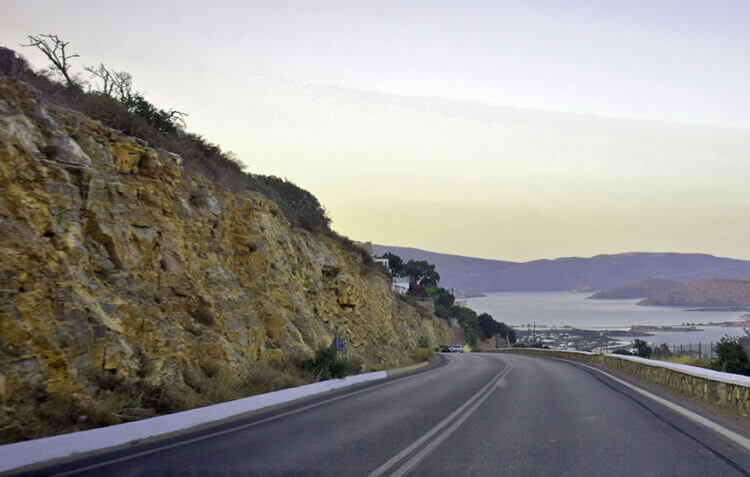

The asphalt of highways gradually disappears, turning to dust — worn away by the wheels of cars. Rubber tyres are consumed too, just like the erasers used to rub out pencil marks.
Surface bumps and roughness

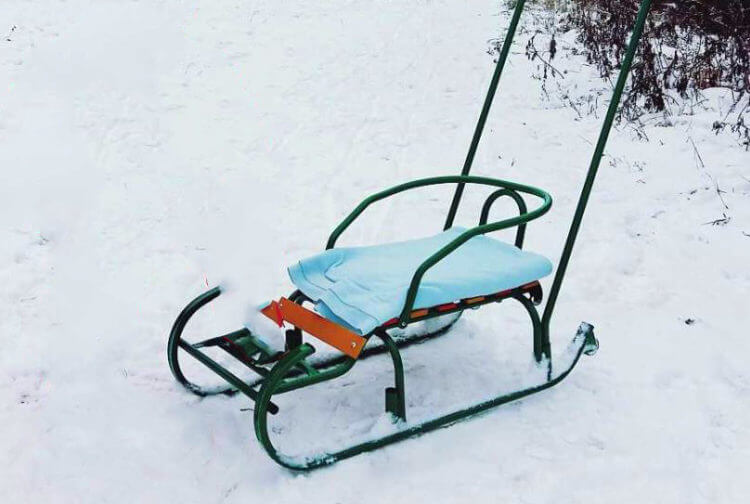

The surface of every solid body always has irregularities and roughness. Often these are completely invisible to the eye. The surfaces of rails or sledge runners look very smooth and shiny, but seen under a microscope at high magnification they reveal ridges and whole mountain ranges. This is why real contact happens only at a scatter of tiny high points, not across the full apparent area.
The same microscopic "Alps" and "Carpathians" exist on the steel rim of a wheel. When a wheel rolls along the rails, the irregularities of its surface and of the rail catch on one another, the rubbing objects are gradually destroyed, and the motion slows down.
Causes of sliding friction
Sliding friction arises from two combined causes: the mechanical interlocking of surface roughness and the molecular forces of adhesion between the two materials. As one surface slides over another, the microscopic asperities collide, shear, and break, dissipating energy. This is the kinetic friction mechanism, and the energy lost reappears as heat and as material worn from both surfaces. Nothing in the world happens by itself, and to produce even the slightest destruction of a steel rail's surface, some effort must be spent. Sliding friction brakes a moving body precisely because it has to spend part of its energy destroying its own surface.
Causes of rolling friction
Rolling friction arises mainly from inelastic deformation of the surfaces at the contact point rather than from surfaces shearing past each other. As a wheel or tyre rolls, its material compresses just ahead of and beneath the contact patch, then decompresses behind it. Because real materials are not perfectly elastic, the compression and decompression cycle does not return all the stored energy — the leftover becomes heat, much like a damped oscillation in a rolling tyre. This continuous compression–decompression cycle, together with the minor interlocking of surface bumps, is what a rolling body must constantly overcome.
Does contact area affect the frictional force?
The frictional force is essentially independent of the apparent contact area between two surfaces, depending instead on the normal force pressing them together and on the nature of the materials. A wide block and a narrow block of the same weight experience nearly the same sliding friction, because the true contact happens only at microscopic high points, and a smaller area simply carries more pressure per point. Normal forces and uneven surfaces do shift how load is distributed, but the total resisting force tracks the weight, not the footprint.
How contact time affects friction
The longer two surfaces rest pressed together before motion begins, the more the microscopic contact points can settle and bond, so static friction can rise slightly with contact time. Highly polished metal surfaces left in contact tend to cold-weld at their touching points, which is why the force needed to start them moving grows the longer they have been at rest. Once sliding is under way, this time-dependent effect largely disappears and kinetic friction settles to a steadier value.

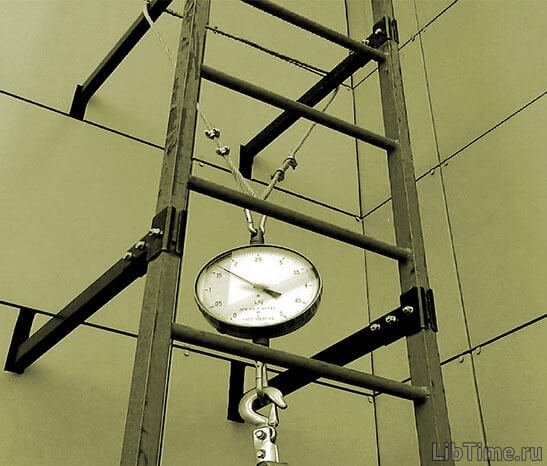

Measuring sliding friction with a dynamometer
Sliding friction is measured by pulling a body at constant velocity and reading the applied force, because in uniform motion the pulling force exactly equals the frictional force. When Coulomb's experiments were reproduced (for more detail, see Types of friction forces) with static friction, a steel plate and a steel block shaped like a brick — only smaller — were used. The block pressed against the plate under its own weight. A hook was fixed to the block, a spring scale — a dynamometer — was hooked on, and by pulling the ring of the dynamometer the block was moved along the plate.
The dynamometer showed the pulling force. If the dynamometer is pulled so that the block moves perfectly uniformly and in a straight line, the pulling force is exactly equal to the frictional force. The dynamometer shows the magnitude of the sliding friction force. It will be somewhat less than the force of static friction determined by Coulomb.
But at low sliding speeds these forces can be regarded as equal. That is what was done: the blocks were dragged along the plate at a definite low speed and the dynamometer readings were noted.
Coulomb's experiments and static friction
Coulomb's experiments established that static friction must be overcome before motion begins and is generally larger than kinetic friction. Then the rubbing surfaces of plate and block were ground and polished, and from time to time the change in friction was measured. At first everything went as expected: the smoother and more even the rubbing surfaces became, the weaker the sliding friction. Researchers began to think they would soon eliminate friction altogether. But it was not to be — when the polished surfaces gleamed like mirrors, the friction forces began to rise noticeably. Well-polished metal surfaces showed a tendency to stick together.
This proved that sliding friction forces are not only a consequence of the roughness of rubbing surfaces, but also a result of molecular cohesion forces inherent in all substances — the very forces acting between the tiniest particles of matter, pressing them against each other, making solids keep their shape, oil cling to metal, glue stick, resin adhere, and mercury roll into little beads. These cohesion forces between particles of matter are called molecular forces.
Coefficient of sliding friction and rolling friction
The coefficient of friction is a dimensionless number that relates the frictional force to the normal force pressing the surfaces together. The coefficient of sliding (kinetic) friction for steel on steel is roughly 0.4–0.6 dry, while the effective coefficient for rolling steel wheels on steel rails is only around 0.001–0.002 — hundreds of times smaller. That vast gap explains why railways, ball bearings, and wheeled vehicles rely on rolling rather than sliding wherever possible.
Coefficient of rolling resistance versus kinetic friction
The coefficient of rolling resistance describes the small force needed to keep a body rolling, and it is almost always far lower than the coefficient of kinetic friction for the same materials. Reference data compiled by engineering sources such as Engineering Toolbox list rolling resistance coefficients for pneumatic car tyres on asphalt near 0.01–0.03, against sliding-rubber-on-asphalt values above 0.7. The comparison confirms that converting a sliding contact into a rolling one is one of the most effective ways to cut resistance in mechanics.
Comparing sliding friction and rolling friction
Rolling friction is markedly smaller than sliding friction for the same load and materials, which is the single most important practical difference between them. In sliding, surfaces shear across each other along their whole contact patch; in rolling, contact is renewed point by point without shearing, so far less energy is spent.
| Aspect | Sliding friction | Rolling friction |
|---|---|---|
| Motion type | Surface slides over surface | Wheel or ball rolls without slipping |
| Main cause | Roughness interlock + molecular adhesion | Inelastic deformation at contact |
| Relative magnitude | Large | Much smaller (often 100× less) |
| Energy loss | High heat and wear | Low heat and wear |
| Typical use | Brakes, clutches, sledges | Wheels, rolling bearings, rails |
Why rolling friction is less than sliding friction
Rolling friction is less than sliding friction because a rolling wheel does not drag its surface across the ground — it lays each point of contact down and lifts it away without sliding. There is no continuous shearing of asperities and no sustained molecular sticking that must be torn apart, as happens in a slide. The only real loss comes from the material flexing at the contact patch, so the resisting force is a small fraction of what a sliding block of the same weight would face.
Energy efficiency of rolling compared with sliding
Rolling motion is far more energy-efficient than sliding because it dissipates only the small hysteresis loss of deformation instead of the large shear-and-wear loss of a slide. This is why a cart on wheels moves easily where a dragged crate does not, and why rolling bearings replaced plain sliding bushings throughout machinery. The kinetic energy of a moving object stays available for motion rather than being burned off as heat, so less driving force sustains a given speed.
Motion of a body on an inclined plane
On an inclined plane, a body's motion is governed by the balance between the component of gravity pulling it down the slope and the friction force resisting that pull. If the down-slope gravity component exceeds the maximum static friction, the body accelerates; if not, it stays at rest. This makes the inclined plane a classic setup for isolating friction, because tilting the surface until the body just begins to slide directly reveals the coefficient of static friction as the tangent of that critical angle.
The link between force, acceleration, and friction
Newton's second law ties the net force on a body to its acceleration, and friction enters as the force subtracted from the driving force. On a slope, the acceleration equals gravity's down-slope component minus the kinetic friction force, all divided by the mass. For rolling bodies the analysis also involves the moment of inertia, since part of the driving effort goes into angular acceleration rather than straight-line speed. Newton's Third Law appears in every rolling system too: the wheel pushes back on the ground exactly as the ground pushes the wheel forward — one of many action-and-reaction examples that make traction possible.
Ways to reduce friction
Friction is reduced by smoothing surfaces, by converting sliding contact into rolling contact, and above all by separating the surfaces with a lubricant. To cut the wear of rubbing surfaces, engineers try to make them as even and smooth as possible so that fewer asperities remain. At one time it was thought that surface roughness was the only cause of rolling and sliding friction, and that friction could be abolished entirely by grinding and polishing the surfaces well. But, as skilfully conducted experiments revealed, defeating rolling and sliding friction is not so simple — polishing alone eventually makes surfaces stick.
Lubricants and anti-friction additives
Lubricants reduce friction by placing a thin film between two surfaces so they slide on the lubricant rather than grinding on each other, and anti-friction additives strengthen that film under load. Selecting a lubricant depends on operating parameters, workload, temperature, and material compatibility — the full set of tribosystem parameters. Common industrial choices include:
- Synthetic greases and synthetic lubricants for stable performance across wide temperature ranges;
- Silicon greases and silicon oil & fluids where thermal and chemical stability matter;
- Fluorinated oils and greases (PFPE) for extreme temperatures and aggressive chemical environments;
- Rust preventive fluids that combine lubrication with corrosion protection.
Choosing the right product means matching thermal and material compatibility to the components — for example the gearmotors, pneumatic cylinders, vacuum pumps, and rolling bearings used across Oil & Gas machinery — so wear is prevented and damage is controlled over the equipment's life.
High load-capacity lubricants
High load-capacity lubricants carry heavy contact pressures without the film breaking down, keeping metal surfaces apart even under crushing loads. These are essential in rolling bearings, gearboxes, and heavily loaded gearmotors, where a film failure would let asperities cold-weld and tear. Specialty suppliers such as Macon Research formulate such greases so that the boundary film survives high pressure, protecting expensive components from scoring and seizure.
Monitoring and managing the friction coefficient
Managing friction in service means monitoring the effective coefficient of friction and re-lubricating or changing lubricant grades before it drifts out of range. A rising friction coefficient signals film breakdown, contamination, or wear, and tracking it lets maintenance teams act before failure. In an analysed tribosystem, engineers record load, speed, and temperature together, because the same contact can shift from healthy hydrodynamic lubrication to damaging boundary contact when any one parameter moves.
Practical applications and industrial examples
Friction shapes everyday life and industry alike: it lets us walk without slipping, lets brakes stop cars, and lets belts drive machines, yet it also wastes energy and wears parts. Real-world examples run from the grip of shoes on pavement to the drag on a bicycle, from tyres gripping the road to bearings spinning in a motor. Understanding both friction and motion is central to designing efficient vehicles and machinery — and to answering the physics questions that appear in competitive exams.
Wear of rails, roads, and tyres from friction
Rails, road surfaces, and tyres all wear because friction continuously removes microscopic material from the contact zone. Railway rails and tram tracks are ground down by rolling friction; highway asphalt is abraded into dust by countless car wheels; and rubber tyres are steadily consumed the same way an eraser is used up on paper. In vehicles and machinery, engineers fight this wear with harder materials, smoother finishes, rolling bearings in place of sliding surfaces, and correctly chosen lubricants — the same strategies studied in engineering case studies of tribology.
For learners preparing competitive technical exams such as RRB JE or the SSC papers, friction is a core General Science topic, and mastering rolling versus sliding friction, coefficients, and inclined-plane problems pays off across previous-year question papers and mock tests. Structured Online Tuition Classes and practice platforms help build the problem-solving speed these exams demand, turning the physics of friction from theory into reliably scored marks.
