CD-R and CD-RW Drives: How They Work and What Sets Them Apart

An optical disc drive (ODD) is a device that uses a laser to read and write data on optical discs such as CDs, DVDs, and Blu-ray discs. CD-R and CD-RW drives are the two recordable members of this family: a CD-R drive writes data permanently to a disc once, while a CD-RW drive writes, erases, and rewrites the same disc many times. In the era of mass flash storage many people assumed optical discs were obsolete, yet recordable discs remain a low-cost, portable medium for archiving, distribution, and long-term storage. This guide explains how both technologies work, how they compare, how to read drive speed names, and how the wider optical drive family — CD-ROM, DVD, and Blu-ray — fits together.

CD-R and CD-RW drives: overview

CD-R and CD-RW drives are optical disc burners that record data onto 120 mm compact discs holding roughly 650–700 MB (about 74–80 minutes of audio). The key difference is permanence: CD-R (Compact Disc-Recordable) is write-once, and CD-RW (Compact Disc-ReWritable) can be erased and rewritten. Both types read standard pressed CD-ROM and audio CDs, so a single modern drive typically handles pre-recorded, recordable, and rewritable discs at once. Three disc categories sit side by side in optical media:

• Pre-recorded (CD-ROM): data is stamped at the factory as physical pits and cannot be changed.
• Recordable (CD-R): blank discs you write once using a burner; the result is permanent.
• Rewritable (CD-RW): blank discs you can write, erase, and overwrite hundreds of times.

A brief history of recordable CD technology

Recordable CD technology grew out of the audio CD standard that Philips and Sony co-developed in the early 1980s, with the recordable specification later codified in the Orange Book standard. Before write-once dye discs became practical, the industry experimented with magneto-optical approaches, and the rewritable CD-RW that arrived in the late 1990s finally gave everyday users a disc they could reuse. The path from those early experiments to the cheap spindles of blank discs sold today runs through two notable milestones.

CD-MO: the predecessor technology and why it failed

CD-MO (Compact Disc-Magneto-Optical) was an early rewritable format defined in part of the Orange Book that relied on magneto-optical recording rather than the dye or phase-change methods used later. Magneto-optical drives wrote data by heating a magnetic layer with a laser and applying a magnetic field, then read it back using the Kerr effect, where the polarization of reflected light shifts according to the magnetic orientation of each spot. CD-MO failed in the consumer market because its discs were not backward-compatible with ordinary CD-ROM readers, the drives were expensive, and the requirement for a separate magnetic write head made the hardware complex. These limitations pushed the industry toward dye-based CD-R and phase-change CD-RW, both of which could be read on standard CD optics.

Introduction of CD-RW

CD-RW was introduced in 1997 as a rewritable format that, unlike CD-MO, could be read by many existing CD-ROM drives once those drives gained the sensitivity to detect its lower-contrast surface. CD-RW replaced the magnetic mechanism with phase-change technology, eliminating the magnetic write head and bringing rewritable recording into mainstream PCs. Its arrival quickly made stand-alone write-once CD-R drives obsolete, since a CD-RW drive could write both CD-R and CD-RW discs as well as read pressed CDs.

CD-R drives

A CD-R drive is an optical disc burner that writes information to a special disc once and cannot erase it afterward. Recording on CD-R discs is carried out because of a photosensitive organic dye layer that is permanently altered by a high-temperature laser beam, a process that loosely resembles exposing a photograph. Once written, the data is fixed for the life of the disc, which makes CD-R well suited to archiving and distributing files that should not change.

CD-R write-once technology explained

CD-R write-once recording works by using a focused laser to heat microscopic areas of a translucent dye layer until they darken, creating low-reflectivity marks that mimic the pits of a pressed CD. The drive's read laser then sees an alternating pattern of reflective and non-reflective spots and decodes it as data, which is why CD-R discs play back on ordinary CD readers. Because the dye change is chemical and irreversible, a CD-R cannot be erased — you can only add data to unused space on a multi-session disc, never overwrite what is already there.

CD-R disc specifications

A standard CD-R disc is a 120 mm polycarbonate disc with a dye recording layer, a reflective metal layer, and a protective lacquer coat, storing about 700 MB or 80 minutes of audio (older 74-minute discs hold around 650 MB). The recordable area is organized into defined regions used during burning:

• PCA (Power Calibration Area): where the drive test-fires its laser to set the correct write power before recording.
• PMA (Program Memory Area): a temporary table holding track information until the disc is finalized.
• Lead-in: contains the table of contents and marks the start of the program area.
• Program area (PA): the main region where user data is written.
• Lead-out: a closing marker that tells a reader the recorded data has ended.

Types of CD-R media: gold, silver, and platinum

CD-R blanks are often nicknamed by the color of their reflective and dye layers — yellow discs are called "gold," while blue and green ones are referred to as "silver" and "platinum" respectively. These names should not be taken literally, since no precious metals coat the discs; they simply describe the visible tint produced by different dye and metal combinations. Specialists frequently debate which type suits a given task — for example, "gold" discs are sometimes blamed for audio CD copies that read poorly on certain music centers, which is more often a matter of dye-to-drive compatibility than disc quality.

Recording speed and media matching

It is important to match the disc's rated recording speed to the speed your drive will use, since speed is expressed as a multiple of the base CD rate (1x = 150 KB/s), with common ratings of 10x, 12x, 14x, 20x, 40x, and 52x. Writing a disc faster than its rating, or burning a slow-rated disc at high speed, can cause errors and reduce data integrity, so most drives detect the disc and select a safe speed automatically. Burning at a moderate speed often improves readability on older or pickier players, and CD-R discs can be written at up to 52x.

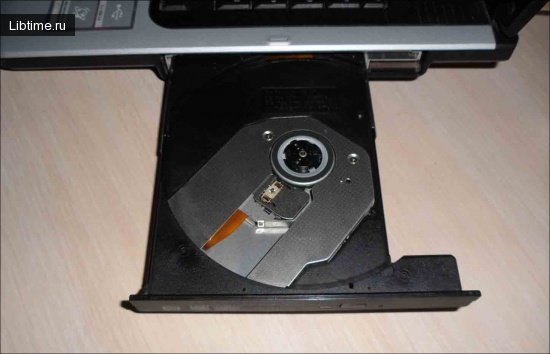

CD-RW drives

A CD-RW drive is an optical burner that writes, erases, and rewrites reusable CD-RW discs in addition to writing CD-R and reading pressed CDs. CD-RW discs use a completely different recording technology from CD-R, and the drives are engineered differently to drive the higher and more precise laser powers that rewriting requires. CD-RW drives effectively replaced stand-alone CD-R drives because they handle every common CD task in one unit.

How CD-RW rewritable technology works

CD-RW rewritable recording uses phase-change technology: the active layer is made of a special alloy that switches between two physical states under laser heat, and each state reflects light differently. A CD-RW disc is built like a layer cake — on a metal base sits a working active layer sandwiched between heat-sensitive dielectric layers that manage the heat of each laser pulse. Variable-power laser recording is central to the process: a high-power pulse melts a spot and lets it cool into the low-reflectivity amorphous state to write a mark, while a lower-power pulse anneals it back to the reflective crystalline state to erase. The commonly used recording alloy is a silver-indium-antimony-tellurium (AgInSbTe) compound.

Crystalline vs amorphous substrate states

The two states that store data on a CD-RW are the crystalline state, which is highly reflective, and the amorphous state, which scatters and absorbs light. In the crystalline state the alloy lets the read laser bounce cleanly off the reflective metal substrate, reading as a "land," while amorphous spots appear dark and read as marks. Because the contrast between these states is lower than the contrast between a pressed disc's pits and lands, CD-RW discs reflect less light overall, which is why older CD readers without enhanced sensitivity cannot read them.

CD-RW read and write capabilities

A CD-RW drive can read pressed CD-ROMs, read and write CD-R discs, and write, erase, and rewrite CD-RW discs, making it the most versatile CD-class drive. Each CD-RW disc can typically be rewritten on the order of 1,000 times before the phase-change layer degrades, and rewriting can be done as a full blank or as selective overwriting depending on the format used. CD-RW discs can usually be written at up to around 24x — slower than CD-R's 52x — because the phase-change material needs controlled heating and cooling.

Erasing and blanking CD-RW discs

CD-RW discs are erased by re-crystallizing the recording layer, and most burning software offers two methods: a quick erase that only clears the disc's table of contents, and a full erase that blanks the entire surface. Quick blanking takes seconds and makes the disc reusable, while full blanking takes several minutes but is more thorough and is recommended before reusing a disc for sensitive data. Common use cases for CD-RW media include temporary backups, draft data you expect to update, and transferring files between machines where the disc can be reused rather than discarded.

CD-R vs CD-RW: key differences

The core difference between CD-R and CD-RW is that CD-R writes data once permanently while CD-RW can be rewritten hundreds of times, and this single distinction drives most of the other trade-offs. CD-R is cheaper per disc, more widely readable on old players, and better for permanent archives; CD-RW is reusable, more expensive, slower to write, and less compatible with very old hardware. The table below summarizes the practical contrasts.

Speed characteristics and drive naming (e.g. 12x8x32)

A CD-RW drive's name encodes three speeds in the form write × rewrite × read, so "12x8x32" means 12x CD-R write, 8x CD-RW rewrite, and 32x read. The smallest number usually corresponds to the slower rewrite speed and the largest to the maximum read speed, with each "x" representing the 150 KB/s base rate. Reading speed is independent of how a disc was recorded — a disc written at 4x can still be read at the drive's full read speed — so the read figure reflects the drive, not the media. Each format also carries speed-class logos: CD-RW discs are labeled High-Speed, Ultra Speed, or Ultra Speed+ to indicate the rewrite range they support, and a disc must be matched to a drive that supports its class.

Disc drive interfaces

Like other disc drives, CD-R and CD-RW units have been built in several interface versions — USB, SCSI, and IDE — that determine how the drive connects to a computer. Internal drives historically used IDE (and later SATA), while external units favored USB for plug-and-play portability, and SCSI served the fastest professional models.

USB, SCSI, and IDE compared

The three classic optical drive interfaces differ in speed, cost, and use case:

• SCSI: used by the fastest and most expensive drives, favored for reliable high-speed burning before USB matured.
• IDE: the mainstream internal interface for medium-priced drives, simple and ubiquitous in desktop PCs.
• USB: the standard for external optical drives today, offering portability and easy connection to laptops and modern desktops without internal bays.

Loading mechanisms and drive form factors

Optical drives differ in how they accept a disc and in their physical size, which affects where they fit and how they are handled. The two common loading mechanisms are tray-load drives, which eject a motorized tray you place the disc on, and slot-load drives, which draw the disc in through a thin slot with no tray. Form factor varies too: half-height drives are the taller 5.25-inch units found in desktop towers, while slim drives are the thin units used in laptops and most portable external enclosures. External optical drive units combine a slim drive with a USB enclosure so any computer lacking a built-in drive can read and burn discs.

Compatibility and backward compatibility

Optical drive compatibility is largely backward: newer drives read and usually write the older formats, but older readers may not handle newer or lower-reflectivity discs. A DVD writer reads and writes CDs, and a Blu-ray writer reads and writes DVDs and CDs, while a 1990s CD-ROM reader may fail on CD-RW entirely. The matrix below shows the general rule for what each drive type handles.

Compatibility with CD readers and MultiRead certification

MultiRead is a certification, backed by the optical storage industry, indicating that a CD or DVD reader has the enhanced sensitivity needed to read low-reflectivity CD-RW discs. Drives carrying the MultiRead logo are guaranteed to read CD-RW media, whereas many pre-1998 CD-ROM drives and audio players lack the sensitivity and simply reject rewritable discs. When CD-RW compatibility matters, checking for the MultiRead mark is the reliable way to confirm a reader will cope.

Compatibility with car stereos and home players

Car stereos and home audio players read CD-R audio discs reliably but are more likely to struggle with CD-RW because of its lower reflectivity, so CD-R is the safer choice for discs played in vehicles or older decks. For best results in car and home players, burn audio CDs to quality CD-R media at a moderate speed and finalize the disc so the player sees a complete table of contents. Modern infotainment systems such as the Pioneer DMH-WT8000NEX and DMH-WT8600NEX have largely moved to USB and streaming, but where a disc slot exists, CD-R remains the most broadly compatible recordable format.

Compatibility chart for computer playback

On a computer the rule of thumb is that each drive generation reads everything below it, as the optical drive and disc compatibility matrix below shows:

*CD-RW reading on a CD-ROM drive requires MultiRead support.

Related optical drive technologies

CD-R and CD-RW sit at the base of a family of optical formats that increased capacity generation by generation, from CD-ROM through DVD to Blu-ray. Each step shortened the laser wavelength and tightened the track pitch to pack more data onto the same 120 mm disc, and writers in each generation generally remain backward-compatible with the discs below them.

CD-ROM drives and specifications

A CD-ROM drive is a read-only optical drive that reads pressed compact discs holding about 650–700 MB, reading data as physical pits and lands molded into the disc. CD-ROM drives cannot write any disc; their speed is rated as a read multiple (for example 48x or 52x), and they formed the foundation for the recordable CD-R and CD-RW media that followed. Recordable CD media exists precisely because CD-ROM is fixed at manufacture, so CD-R and CD-RW added the ability to create discs a CD-ROM drive can then read.

DVD-ROM and DVD±RW writers

A DVD-ROM drive reads DVDs holding 4.7 GB on a single layer (8.5 GB dual-layer) as well as all CD formats, and DVD±RW writers add the ability to burn recordable and rewritable DVDs. DVD±RW writers support both the DVD+ and DVD− recordable standards and most handle dual-layer (DL) media, roughly doubling capacity by stacking two recordable layers. Because they also write CD-R and CD-RW, DVD writers became the standard internal optical drive once DVD media was affordable.

Blu-ray drives and storage capacity

A Blu-ray drive reads and writes Blu-ray Disc media holding 25 GB per single layer and 50 GB dual-layer, using a shorter blue-violet laser than the red laser of DVD. Blu-ray writers are fully backward-compatible, reading and burning DVDs and CDs as well, and triple- and quad-layer BDXL discs plus Ultra HD Blu-ray extend support to 4K optical media. Pioneer offers a broad current lineup of Blu-ray burners, including internal models such as the BDR-2213, BDR-S13UBK, BDR-S13U-X, BDR-X13UBK, and BDR-X13U-S, and external and portable units such as the BDR-XD08B, BDR-XD08G, BDR-XD08S, BDR-XD08UMB-S, BDR-XS07S, and BDR-XS07UHD. The Sony PlayStation 3 was one of the early consumer devices to popularize Blu-ray playback by including a Blu-ray drive as standard.

Manufacturers of CD-R and CD-RW drives

Recordable CD drives were produced by a range of manufacturers, with popular brands including Panasonic, Sony, Ricoh, Teac, and Yamaha. The most expensive, high-quality models were associated with Plextor and Hewlett-Packard, while Mitsumi was a well-known maker of inexpensive IDE drives. Today Pioneer and TSSTcorp are leading names in optical drives, and Verbatim is among the best-known media brands — its Verbatim 94691 spindle of blank discs is a familiar bulk-packaging example, sold as a stack of discs on a central spindle for cost-effective storage. Optical drives also ship pre-installed in many computers from Dell, including the Inspiron, OptiPlex, Latitude, Vostro, XPS, and Alienware lines, such as the Inspiron 3562.

Library technology and archival use

Libraries were early adopters of CD-ROM and recordable optical media for catalogs, reference databases, and archiving, and the trade-offs of these formats were tracked closely in professional literature. Writers such as Richard W. Boss and Marshall Breeding documented optical storage decisions in publications including the Library Systems Newsletter, issued in Chicago, IL by the American Library Association, while contributors like Howard S. White and outlets such as New Media and HyperMedia Communications covered the broader multimedia market. For library technology implementation decisions, the appeal of CD-R was permanence for archival masters, while CD-RW suited working copies — a distinction that still guides anyone choosing recordable media for long-term storage.

Best practices for disc handling and maintenance

Proper handling and storage are the biggest factors in how long a recordable disc keeps its data, and good habits can extend usable life well beyond a decade. Data stability and longevity depend on protecting the recording layer from light, heat, humidity, and physical damage. Follow these recommendations:

• Hold discs by the outer edge or the center hole; never touch the recording surface.
• Store discs vertically in cases, away from direct sunlight, heat, and high humidity.
• Clean a dirty disc by wiping gently from the center straight out to the edge, never in circles.
• Use a soft, lint-free cloth and water or a dedicated disc cleaner — avoid solvents.
• Label discs on the printable top surface with a soft marker or inkjet printer made for surface labeling; never use adhesive labels that can unbalance the disc.
• Keep important data on more than one disc, since no recordable medium is permanent.

Troubleshooting optical drive issues

Most optical drive problems come down to dirty or damaged discs, drive-and-media speed mismatches, or compatibility gaps rather than a failed drive. If a disc will not read, try cleaning it, testing it in another drive, and confirming the reader supports the format (a CD-ROM drive needs MultiRead for CD-RW). If burns fail or verify poorly, lower the write speed to match the media rating, use quality blanks, and update the drive's firmware. Slow or unrecognized external drives are often a connection issue — try a different USB port or cable before concluding the drive is faulty. Community troubleshooting on forums such as Reddit can help isolate model-specific quirks, but always cross-check advice against the manufacturer's documentation.
