The Earth is built from a series of nested layers — crust, mantle, outer core, and inner core — that differ in composition, temperature, and physical state. Since antiquity people have tried to draw diagrams of Earth's internal structure, fascinated by the interior as a storehouse of water, fire, and air, and as a source of fabulous riches. From this came the urge to penetrate in thought into the depths of the planet, where, in the words of the Russian scholar Lomonosov,
nature forbids hand and eye to reach.
This page traces how those diagrams evolved from ancient fantasy to the modern, seismically grounded cut-away of Earth's interior, and explains what each layer is made of and how it behaves.
Diagrams of Earth's internal structure: history and present day
Diagrams of Earth's internal structure progressed from imaginative woodcuts of fiery caverns to precise scale drawings built on seismic data. Early thinkers had no way to observe the deep Earth directly, so their schematics mixed observation with theology and myth. Only with the rise of seismology in the late nineteenth and twentieth centuries did a quantitatively accurate model emerge, identifying the crust, mantle, and core and the boundaries between them.
The first attempts to depict Earth's interior
The earliest depictions of Earth's interior came from Greek philosophy and Renaissance natural science, long before any physical evidence existed. These pictures treated the planet as a solid body riddled with cavities full of fire, water, and air, reflecting the belief that the underworld both warmed the Earth and manufactured metals.
Aristotle's first scheme of Earth's internal structure
The greatest thinker of antiquity, the Greek philosopher Aristotle (384–322 BC), taught that a "central fire" lay inside the Earth and burst out through "fire-breathing mountains." He held that ocean water seeped into the depths, filled cavities, then rose again through fissures to form springs and rivers that flowed back to the seas — an early model of the water cycle.
Athanasius Kircher's scheme of Earth's structure (1664)
The first true diagram of Earth's internal structure appeared only in the second half of the seventeenth century, in 1664, drawn by Athanasius Kircher.
In Kircher's scheme a central core was filled with fire, while cavities nearer the surface held fire, water, and air together. He was convinced that the fires inside warmed the planet and produced metals, fed not only by sulphur and coal but by other mineral substances of the deep, while underground rivers generated winds.
Woodward's second scheme of Earth's internal structure (1735)
In the first half of the eighteenth century a second scheme of Earth's internal structure appeared, this one by Woodward.
Rock layers and the work of Nicolas Steno
The way rock layers form and lie was first explained by the outstanding Danish naturalist Nicolas Steno (1638–1687), who lived for years in Florence under the name Steno, practising medicine. Against the fanciful schemes of Earth's structure, Steno set direct observation drawn from mining practice.
Miners had long noticed the orderly arrangement of sedimentary rock layers. Steno not only correctly explained how they formed but also the later changes they underwent. These layers, he concluded, had settled out of water.
The sediments were soft at first, then hardened; the beds lay horizontally at first, then, under the influence of volcanic processes, suffered significant displacement, which explains their tilt. But what held true for sedimentary rocks could not, of course, be extended to all the other rocks making up the Earth's crust. How had those formed — from watery solutions or from fiery melts? That question gripped scientists until the 1820s.
The dispute between Neptunists and Plutonists
The origin of the crust's rocks was fought over by Neptunists and Plutonists until the volcanic origin of basalt settled the matter. Supporters of water — the Neptunists (after Neptune, the ancient Roman god of the seas) — and supporters of fire — the Plutonists (after Pluto, the Greek god of the underworld) — clashed repeatedly. Eventually researchers proved the volcanic origin of basaltic rocks, and the Neptunists had to concede defeat.
Basalt and its role in the structure of the Earth's crust
Basalt is a very widespread volcanic rock that often reaches the surface and at great depth forms the reliable foundation of the Earth's crust. Heavy, dense, hard, and dark, basalt is characterised by columnar jointing in five- and six-sided columns, and it makes excellent building material. It can also be melted and cast: basalt castings are refractory and acid-resistant, used for high-voltage insulators, chemical tanks, and sewer pipes, and the rock occurs in Armenia, the Altai, Transbaikalia, and elsewhere.
Basalt stands out from other rocks by its high specific gravity. Determining the density of the whole Earth is far harder, yet it is essential for understanding the structure of the globe. The first reasonably accurate determinations of Earth's density were made two centuries ago, averaging 5.51 g/cm³ across many measurements.

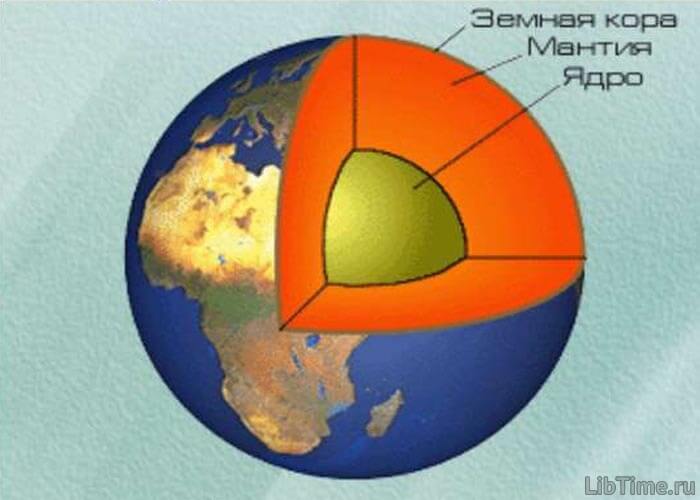

The modern scheme of Earth's internal structure
The modern scheme of Earth's internal structure was made possible by seismology, the science of earthquakes (from the Greek "seismos," earthquake, and "logos," science). As the great seismologist, Academician B. B. Golitsyn (1861–1916), put it,
every earthquake can be likened to a lantern that lights up for a short time and, illuminating the interior of the Earth, lets us examine what goes on within.
Highly sensitive recording instruments — seismographs — revealed that the speed of seismic waves travelling through the globe is not uniform: it depends on the density of the materials they pass through. Through sandstone, for example, the waves move more than twice as slowly as through granite.
This allowed important conclusions about Earth's structure. On modern scientific views the globe can be pictured as three spheres nested one inside another, like a wooden toy ball that opens to reveal a smaller ball, and that a smaller one still:
- The outer sphere is the Earth's crust.
- The second is the mantle (the Earth's shell).
- The third is the core, divided into an outer core and an inner core.
The wall thickness of these "spheres" varies; the outermost is thinnest. The crust is not a uniform layer of constant thickness — beneath Eurasia it ranges from 25 to 86 kilometres. Seismic stations measure the crust along the Vladivostok–Irkutsk line at 23.6 km; between St Petersburg and Yekaterinburg at 31.3 km; Tbilisi to Baku at 42.5 km; Yerevan to Grozny at 50.2 km; and Samarkand to Chimkent at 86.5 km. The mantle, by contrast, is very thick — about 2,900 km. The outer core spans roughly 2,200 km, and the inner core has a radius near 1,200 km. For comparison, Earth's equatorial radius is 6,378.2 km and its polar radius 6,356.9 km.
How a cut-away of the Earth is drawn
A cut-away (cross-section) diagram of the Earth is a scale drawing that slices the globe open to show its concentric layers and their boundaries. To build one accurately, geologists plot the depths at which seismic-wave velocities jump sharply — these velocity jumps mark layer boundaries such as the Mohorovičić discontinuity between crust and mantle and the boundary between the mantle and the core. A labelled Earth-layers diagram then sets each layer to scale: a thin crust, a thick mantle, a liquid outer core, and a solid inner core, with temperatures and pressures annotated by depth.
Physical and chemical layers of the Earth
The Earth can be divided two ways at once: by chemical composition and by mechanical (physical) behaviour, and the two classifications do not line up exactly. Chemically the planet splits into crust, mantle, and core. Mechanically it splits into the rigid lithosphere, the partially molten asthenosphere, the stiff lower mantle (mesosphere), the liquid outer core, and the solid inner core. The lithosphere, for instance, spans both the chemical crust and the uppermost chemical mantle, which is why the two schemes are distinct.
As depth increases, temperature rises. In English coal mines and Mexican silver mines the heat at one kilometre exceeds 30 °C. The number of metres one must descend for the temperature to rise by 1 °C is the geothermal step; it varies between about 20 and 46 metres and averages 33. For Moscow, deep drilling gives a geothermal gradient of 39.3 metres. The deepest boreholes do not yet exceed 12,000 metres, and below about 2,200 metres some wells already yield superheated steam used in industry.
Pressure climbs steeply too. At a depth of 1 km the pressure beneath continents reaches 270 atmospheres (only 100 atmospheres beneath the ocean floor at the same depth), at 5 km it is 1,350 atmospheres, at 50 km 13,500 atmospheres, and in the central parts of the planet it exceeds 3 million atmospheres. Because pressure raises the melting point, basalt that melts at 1,155 °C in a furnace begins to melt only at 1,400 °C at a depth of 100 km. Scientists estimate the temperature is about 1,500 °C at 100 km, rising slowly to 2,000–3,000 °C only at the very centre.
The Earth's crust: composition, types, and thickness
The Earth's crust is the thin, rigid outer shell and is chemically built mainly from nine elements out of the hundred-odd known. Foremost are oxygen, silicon, and aluminium, followed in smaller amounts by iron, calcium, sodium, magnesium, potassium, and hydrogen; the rest together account for only about two per cent. Because silicon ("silicium," giving the syllable "si") and aluminium ("al") dominate after oxygen, the crust was named sial. Its average density is about 2.6 g/cm³, far less than the deeper layers.
The crust carries the rocks of the rock cycle — igneous rocks such as granite and basalt, sediments, and metamorphic rocks. The boundary between the crust and the mantle beneath it is the Mohorovičić discontinuity, where seismic-wave velocity rises abruptly. It is named after Andrija Mohorovičić, the Croatian seismologist from Croatia who identified it in 1909 from earthquake records.
Continental crust and its structure
Continental crust is the thicker, lighter, granite-rich crust that underlies the continents and their mountains. It ranges from roughly 25 to 70 km thick (locally up to about 86 km beneath the highest ranges), and being dominated by granitic rock it is less dense than oceanic crust, which lets the continents stand high. Its upper, silica- and aluminium-rich character is what earned the crust the name sial.
Oceanic crust
Oceanic crust is the thin, dense, basalt-rich crust that floors the ocean basins. Only about 5–10 km thick, it is far thinner than continental crust and is made largely of basalt, giving it a higher density. Oceanic crust is continually created at the mid-ocean ridge and consumed at ocean trenches, so the seafloor topography of basins like the Pacific Ocean records the ongoing manufacture and recycling of this layer.
The Earth's mantle
The mantle is the thick layer between crust and core, making up most of Earth's volume and behaving as a slowly flowing solid. Below the crust the composition shifts toward magnesium-rich rock such as peridotite, which is why this region was historically called sima — from "si" (silicon) and "ma" (magnesium). Under rising pressure even granite acquires plasticity and shows signs of flow, and this is the state characteristic of the mantle; the pockets of molten magma directly feeding volcanoes are limited in size.
The asthenosphere: properties and movement
The asthenosphere is a weak, partially molten zone of the upper mantle on which the rigid lithosphere rides. Its high temperature and near-melting state give it low viscosity over geological timescales, allowing it to deform and flow. Because the asthenosphere can creep, the overlying plates of the lithosphere can move across it — the mechanical basis of plate tectonics.
Convection currents in the mantle
Convection currents are slow circulating flows in the mantle driven by heat from below, and they are the engine of plate motion. Hot, less-dense mantle material rises, cools near the top, and sinks again, forming great convection cells. The heat that drives them comes partly from Earth's original formation and partly from the radioactive decay of isotopes within the mantle. These currents drag the tectonic plates of the lithosphere, opening ocean basins and building mountains.
The Earth's core: outer and inner
The core is the central region of the Earth, divided into a liquid outer core and a solid inner core. The mantle material around the core is viscous, while in the core itself the immense pressure and temperature put matter into a special physical state — as hard as a solid yet as electrically conducting as a metal. Scientists describe this as a metallic phase that cannot yet be reproduced in the laboratory. The two-part structure was revealed by seismology: the discovery that the inner core is solid is credited to the Danish seismologist Inge Lehmann in 1936.
Composition of the Earth's core
The Earth's core is composed mainly of iron and nickel, an alloy once nicknamed nife — "ni" for nickel and "fe" for iron (Latin "ferrum"). Iron and nickel sank to the centre during planetary differentiation, the early process — sometimes called the iron catastrophe — in which the young, heated planet separated into a dense metallic core and lighter silicate layers above. The arrangement is confirmed by chemical analysis of meteorites: iron meteorites represent the interiors of shattered bodies and match the expected core material, while stony (chondrite) meteorites resemble crustal and mantle rock.
Crystal structure of the inner core
The inner core is a solid sphere of iron-nickel alloy whose atoms are locked into a crystal lattice by colossal pressure. Although hotter than the liquid outer core, the inner core stays solid because pressure at the centre exceeds three million atmospheres, raising the melting point above the local temperature. Density rises steadily with depth — from 2.6 g/cm³ in the crust to over 12 g/cm³ in the central core — with sharp jumps at the boundary of the outer core and within the inner core itself. The inner core is also thought to rotate slightly differently from the rest of the planet.
Density and distribution of matter inside the Earth
Density inside the Earth increases from about 2.6 g/cm³ at the surface to more than 12 g/cm³ at the centre, reflecting heavier elements concentrated toward the core. The whole-Earth average density of 5.51 g/cm³ is far higher than the density of surface rocks, which was itself an early clue that a dense metallic core must lie deep within. American geophysicist Francis Birch later refined the link between seismic-wave velocity, pressure, and density, helping confirm that the core is iron-rich. The Russian academicians V. I. Vernadsky (1863–1945) and his pupil A. E. Fersman (1883–1945), author of Entertaining Mineralogy and Entertaining Geochemistry, left major works on Earth's composition and the distribution of chemical elements.
The Earth's magnetic field and the geodynamo
The Earth's magnetic field is generated by the geodynamo — electric currents produced by the churning, convecting liquid iron of the outer core. As the conducting metal of the outer core moves, it acts like a self-sustaining dynamo, and this Earth's geodynamo is the reason the planet has a global magnetic field at all. Above the Curie temperature, rocks lose their permanent magnetism, so the field cannot come from solid magnetised rock at depth — it must be generated by fluid motion in the core.
The magnetic field is not fixed. Magnetic North drifts over time, and the geological record shows that the field has reversed polarity many times, with north and south magnetic poles swapping. These pole drifts and reversals are read from the magnetism frozen into volcanic rock as it cooled. Agencies such as NASA, the USGS, and its Volcano Hazards Program track present-day field behaviour and pole movement, and comparison with planets like Mars — which lacks a strong global field today — underlines how a liquid, convecting core is needed to sustain one.
How continental landforms and mountains are built
Continental landforms and mountains are built mainly by plate tectonics, as convection in the mantle drives the lithospheric plates together, apart, and past one another. Where plates collide, crust crumples and thickens into mountain ranges; where they pull apart, basins and ridges form; and where they grind past each other, stress builds and releases as earthquakes. Sedimentary rock layers, originally laid down flat as Steno described, are folded and tilted by these movements.
An earthquake is the sudden release of strain as rock breaks and slips along a fault, most often at plate boundaries — the same seismic waves that cause shaking are what let scientists image the interior. Volcanic landforms add to the picture: hotspot volcanism beneath Hawaii, for example, builds island chains as a plate drifts over a fixed plume of rising mantle material. The science of plate tectonics ties these surface features back to the slow flow of the deep Earth.
Earth's outer envelopes: atmosphere, hydrosphere, lithosphere, and biosphere
Our picture of the Earth is incomplete if we look only at its interior, because the planet is wrapped in outer envelopes as well. The Earth is surrounded first by an air shell, the atmosphere (from the Greek "atmos," air, and "sphaira," sphere). The atmosphere of the newborn planet held the water of the future oceans as vapour, so its pressure was higher than today's; as it cooled, streams of superheated water poured onto the Earth and the pressure fell.
Those hot waters created the primeval ocean — the water shell, or hydrosphere (from the Greek "hydor," water; more detail: The importance of water in human life). Covering about 71% of the surface, the hydrosphere forms a single world ocean. Surveys show the shape of its floor changes over time, and because the oldest deposits are mostly shallow-water, small water bodies must have dominated early Earth, the reverse of today's deep oceans.
The outer solid shell of the globe is the lithosphere (from the Greek "lithos," stone), the rigid layer of crust and uppermost mantle that is broken into the tectonic plates. Finally, living organisms — spreading up to about 5 km into the atmosphere, 5–6 metres into the soil, and throughout the hydrosphere (more detail: What kind of water is in a body of water) — define the thinnest shell of all, the biosphere (from the Greek "bios," life), the realm of life itself.
