Water Turbine: How It Works, Its Inventor, and Energy Efficiency

A water turbine is a rotating machine that converts the kinetic and potential energy of moving water into mechanical work, and it does so with remarkable efficiency — losing only about 5 percent of the energy it captures. Unlike many "gifts" from nature that turn out to be less generous than they first appear, the water turbine genuinely delivers, extracting far more useful power from flowing water than the older devices it replaced.

What Is a Water Turbine?

A water turbine is a machine in which a jet or flow of water strikes a set of blades mounted on a wheel, spinning it and producing rotational mechanical energy. That rotation is then typically coupled to a generator to make electricity. The turbine improves on the simple water wheel by capturing not just the weight and push of the water but its velocity as well.

Definition and Function of Water Turbines

The function of a water turbine is to transfer energy from water to a rotating shaft as efficiently as possible. Consider an ordinary water wheel: the gurgling, the noise, and the spray of water all reveal how much energy is wasted while it works. It has been estimated that a water wheel could yield two to three times as much energy as it actually delivers of its own accord. A turbine, by contrast, wrings nearly all the available energy out of the same flow.

The key to that performance is the pairing of stationary guide vanes with a moving runner. The guide vanes direct the water stream onto the working wheel at the ideal angle, setting it spinning much as a whip sets a spinning top in motion. The productivity of this "water top" depends entirely on how well the fixed guiding blades and the movable runner are matched to each other.

Etymology and Terminology: Why "Turbine"?

The word "turbine" comes from the Latin, and it captures the spinning-top nature of the device. The runner sits inside a spiral casing shaped rather like the shell of a snail, and it behaves like a top that responds to the speed of the water rushing past it — the very quality the name evokes.

How Water Turbines Work

A water turbine works by channelling water through guide vanes onto a bladed runner, converting the water's speed and pressure into rotation. On a plain water wheel only the impact and the weight of the water do the work. In a turbine the runner, seated within its spiral casing, also absorbs the velocity of the water, which is where the extra energy comes from.

Guiding Vanes and the Working Wheel

The guiding vanes replace, in effect, the crack of the whip that sets a child's top spinning. These fixed blades aim the jet of water precisely at the runner blades and drive them into rotation. The output of the whole machine hinges on this successful combination of immovable guide vanes and a mobile working wheel — the swirl imparted to the water is transferred cleanly into torque on the shaft.

Energy Efficiency vs. Water Wheels and Steam Engines

A water turbine pays nature only about 5 percent of the energy it handles, which makes it dramatically more economical than the alternatives. Reciprocating steam engines waste far more — of the heat energy supplied to a steam engine, at most only 25 percent is turned into useful work. Imagine a worker who is handed 100 metres of iron wire and throws 75 metres of it away.

The steam engine does not truly scatter those 75 percent to the wind, because nothing in nature is ever lost. That 75 percent is the "fee" nature charges for the work performed: part of the spent energy goes to friction, part departs in the exhaust gases. The turbine simply arranges the flow so that far less is surrendered, which is why, from the middle of the 19th century onward, people increasingly adopted economical energy machines — steam, gas, water, and wind turbines. Anyone comparing renewable options can see why hydro power, drawing on the physics that also governs how science relates to everyday life, became so attractive.

Historical Development from Water Wheels to Modern Turbines

The path from the water wheel to the modern turbine runs through centuries of refinement, from crude rotary devices to the precisely engineered runners of today. The decisive shift came when engineers learned to guide the water onto shaped blades instead of merely letting it fall on paddles.

Early Turbine Designs and Roman-Era Turbines

Rotary water machines are far older than the industrial age, with horizontal-wheel mills used across the Roman Empire to grind grain. These early designs, along with the reaction wheel demonstrated by Johann Segner in the 18th century, established the principle that flowing water could be made to spin a wheel continuously — the conceptual ancestor of every water turbine that followed.

Leonardo da Vinci and the First Turbine Concepts

Leonardo da Vinci sketched some of the first true turbine concepts, imagining a wheel driven by the speed of water rather than its weight alone. When Leonardo da Vinci designed his early water turbine, and when James Watt built the first practical steam engine, neither man suspected that their inventions, joined together, would one day perform such colossal work in power stations.

Evolution of Turbine Technology in the 19th Century

The 19th century turned the turbine from an idea into an industrial machine, spurred by the demands of the Industrial Revolution. Claude Burdin coined the modern use of the term and inspired his student Benoît Fourneyron, who built a working outward-flow turbine in 1827, while Jean-Victor Poncelet advanced the theory of curved blades. Water turbines came to be named after the engineers who created them, and the naming convention endures to this day.

Types of Water Turbines

Water turbines fall into two broad families — impulse and reaction — and within them several distinct designs named after their inventors. The main types in use are the Francis turbine, the Pelton turbine, and the Kaplan turbine, joined by cross-flow and propeller variants for particular conditions.

• the Francis turbine (invented in 1849 by the American James B. Francis),
• the Pelton turbine (invented in 1884 by the American Lester Allan Pelton),
• the Kaplan turbine.

Francis Turbines: Specifications and Uses

The Francis turbine, developed by James Francis in 1849, is a reaction turbine that handles medium heads and medium-to-large flows, making it the most widely used design in hydropower plants worldwide. Water enters radially through the guide vanes and exits axially, giving high efficiency across a broad operating range — one reason it powers many of the largest installations, including units at the Grand Coulee Dam.

Pelton (Impulse) Turbines: Design and Applications

The Pelton turbine, or Pelton wheel, is an impulse design invented by Lester Pelton in 1884 for sites with very high head and relatively low flow. One or more nozzles fire high-speed jets of water into spoon-shaped buckets on the rim of the runner, and because the buckets are split down the middle the water is turned back on itself, transferring nearly all its momentum. Pelton wheels dominate mountain hydro schemes where water falls a great vertical distance.

Kaplan Turbines and Their Use in Hydropower Plants

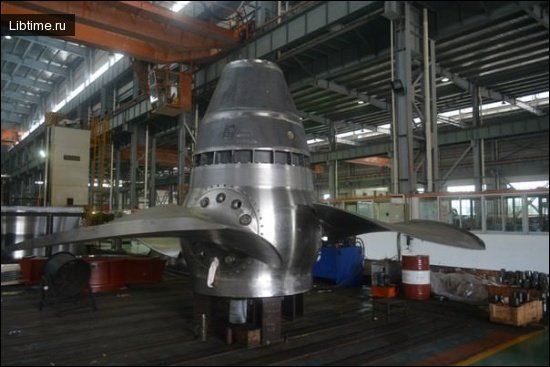

The Kaplan turbine, invented by Viktor Kaplan, is a propeller-type reaction turbine with adjustable blades suited to low heads and very large flows. Its runner resembles a ship's propeller, and the ability to pitch both the guide vanes and the blades keeps efficiency high even as the flow varies. Large Kaplan machines rank among the most powerful hydro turbines built, with the biggest runners reaching the height of a nine- or ten-storey building — through their water intakes an express locomotive could pass freely.

Cross-Flow Turbines Design

The cross-flow turbine, developed from the ideas of Anthony Michell, Donát Bánki, and Fritz Ossberger, sends water through the runner twice — inward across the blades and then outward again. This drum-shaped machine tolerates a wide range of flows and silty water, which makes it a robust, low-cost choice for small and micro hydro projects on modest streams.

Impulse vs. Reaction Turbines

The fundamental distinction between turbine types is whether they are impulse or reaction machines. In an impulse turbine, such as the Pelton wheel or the cross-flow turbine, a free jet of water at atmospheric pressure strikes the blades. In a reaction turbine, such as the Francis or Kaplan, the runner is fully immersed and driven by both the pressure drop and the velocity of the water passing through it. Kinetic or free-flow turbines form a further category, harvesting energy from the current of a river or tidal stream without any dam at all.

Choosing the Right Turbine

The right turbine for a site is chosen chiefly from its head and its flow, the two measurements that determine how much power a stream can yield. Getting this match right is what separates an efficient installation from a disappointing one.

Head and Flow Considerations for Turbine Selection

Head — the vertical distance the water falls — and flow — the volume passing per second — together dictate the turbine type. High-head, low-flow sites call for a Pelton wheel; medium-head sites suit a Francis turbine; low-head, high-flow sites are best served by a Kaplan or propeller turbine. A proper site survey measures both figures across the seasons before any equipment is specified, since the numbers set the entire design.

Power Output and Capacity Comparisons

The power a turbine produces is proportional to head multiplied by flow multiplied by efficiency, which is why large hydro machines dwarf their predecessors. The Kaplan turbines at major Russian stations spin their runners at high speed and average well over 170,000 horsepower — making them roughly 10,000 times more powerful than a water wheel and eight times more powerful than a reciprocating steam engine.

At such enormous outputs a water turbine burns not a single bucket of coal. More advanced water turbines are built with capacities of 270,000 horsepower, and a steam turbine can even run on the waste steam coming from another plant, reaching up to 400,000 horsepower. Three such turbines could replace the physical strength of 40 million workers; in a single second one can lift a load of 150 kilograms to a height five times greater than the tallest mountain peak on Earth.

Water Turbines and Electricity Generation

Water turbines generate electricity by spinning a coupled generator, and the current they produce can either feed the grid or charge a battery bank for later use. For a small residential system, how that power is handled matters as much as the turbine itself.

Grid Connection vs. Battery Storage

A micro hydro system can be connected directly to the grid or wired into a battery storage system for off-grid independence. Grid connection lets surplus generation be sold back and avoids the cost of batteries, while a battery bank paired with an off-grid inverter guarantees power during outages and suits remote sites. Pumped-storage hydroelectricity applies the same idea at utility scale — plants such as Bath County in the United States and Fengning in China pump water uphill when demand is low and release it through their turbines when demand peaks.

DC-DC Converters for Turbine Power Systems

Small hydro installations rely on DC-DC converters to match the turbine's variable output to the voltage a battery or inverter needs. Boost, buck, and isolated converters raise, lower, or electrically separate voltages, and alongside them charge controllers such as MPPT and PWM units, voltage stabilizers, transformers, and pure sine wave inverters keep the delivered power clean and steady — the same components that also serve solar generators, solar panels, and wind turbines in a hybrid renewable setup.

Electricity Pricing and Selling Power to the Grid

Owners of a grid-connected micro hydro scheme can sell surplus electricity to a utility, turning a stream into a modest income. In the United Kingdom, suppliers such as Scottish & Southern buy back exported power, and specialist installers like Suneco Hydro build systems sized to a household's demand. Because a stream flows day and night, hydro often earns more consistently than intermittent sources, improving the long-term return on the installation.

Benefits of Hydro Power Technology

Hydro power technology offers clean, continuous, and highly efficient generation with very low running costs. Its main advantages include:

• High efficiency — turbines convert around 90 percent of the water's energy into work, far above steam engines.
• Constant output — a stream runs around the clock, unlike solar or wind.
• No fuel — the machine consumes no coal, gas, or oil.
• Long service life — well-built turbines operate for decades with modest maintenance.
• Low operating cost and strong ROI — once installed, generation is nearly free, so the system pays back its capital over time.

These strengths explain why micro hydro is a compelling option for rural homes with a suitable stream, though a shortage of qualified installers can lengthen project timelines and workforce development remains a live concern in the sector.

Environmental Considerations and Regulations

Hydro power is renewable and emissions-free in operation, but it must be built with care for the stream ecosystem it depends on. Diverting water can affect fish passage, sediment movement, and downstream habitat, so responsible schemes leave a compensation flow in the river and screen intakes to protect wildlife.

Government Legislation and Incentives

Water turbine projects require environmental permits and can benefit from government incentives that reward clean generation. In England and Wales, the Environment Agency licenses abstraction and impoundment, while in the United States the Water Power Technologies Office and the Hydropower and Hydrokinetic Office support research and workforce programmes. Small hydro is popular in scenic upland regions such as the Lake District, the Peak District, Scotland, and Wales, where regulators balance renewable ambition against the need to preserve rivers.

Comparison with Steam Turbines

Water turbines and steam turbines share the same spinning principle but differ in their energy source and efficiency. A water turbine draws on falling or flowing water and gives back nearly all of it, while a steam turbine converts heat and inevitably loses much of it to friction and exhaust. Yet steam turbines have their own virtue: they can be sited anywhere heat is available and can even run on waste steam from a neighbouring plant, reaching capacities of 400,000 horsepower. When the water turbine that traces back to Leonardo da Vinci is joined to the steam engine descended from James Watt, the pair together perform work on a scale their inventors could never have imagined.
